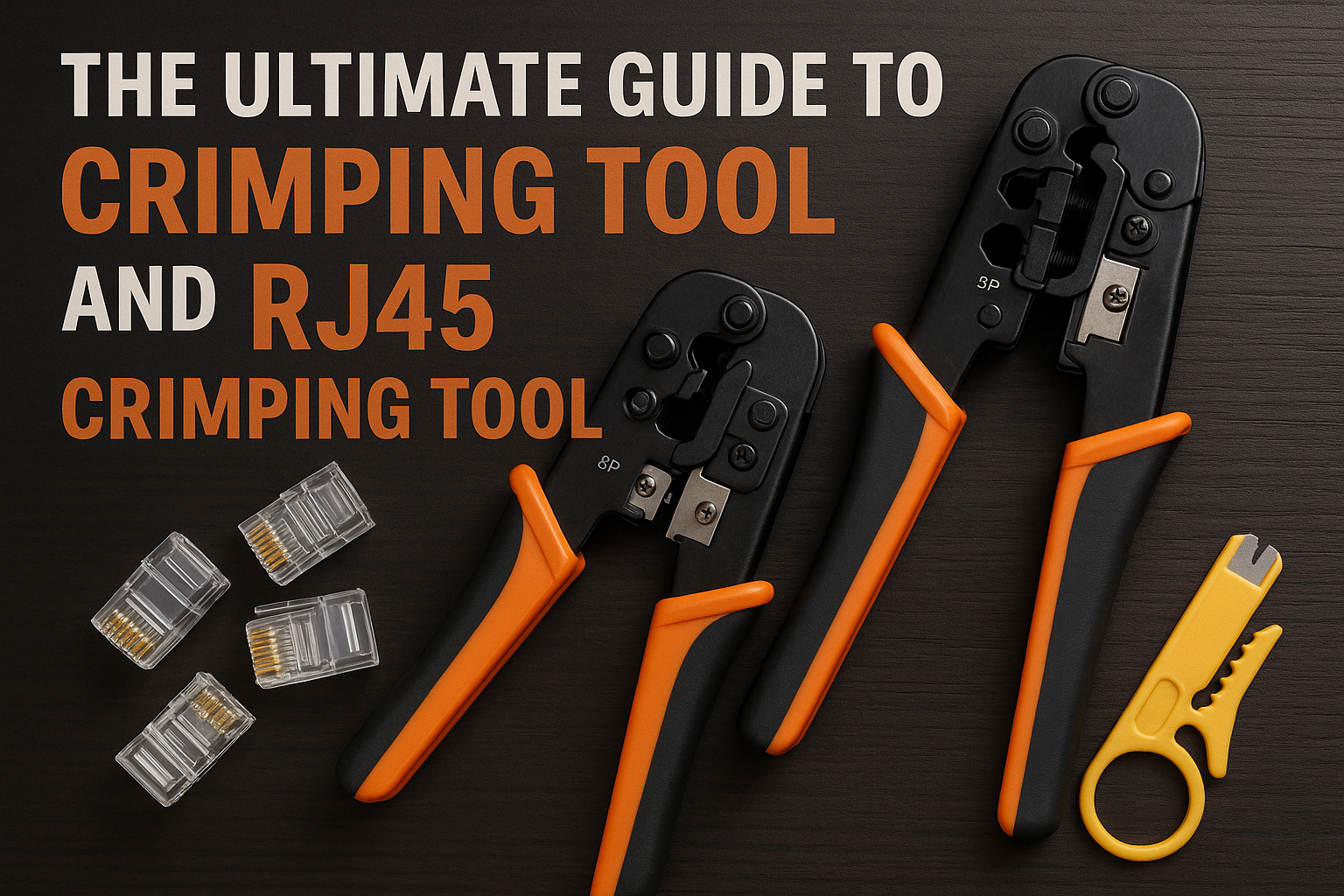

Ultimate Guide to Crimping Tool and RJ45 Crimping Tool Leave a comment

What is a Crimping Tool and RJ45 Crimping Tool?

If you’ve ever tried setting up the internet at home or worked with cables, you might have come across something called a crimping tool. But what is it, and why do you need it? Let’s find out!

What is a Crimping Tool?

A crimping tool is a special tool used to attach connectors to the ends of cables. It helps you make custom cables or fix old cables by attaching new connectors. This tool is important for making sure that the wires inside the cable are connected properly to the connector, which helps the cable work the right way.

For example, if you want to make a new internet cable, you would need a crimping tool to attach the connector to the cable. This is called “crimping.” The crimping tool presses the connector onto the wires inside the cable and keeps them in place.

What is an RJ45 Crimping Tool?

An RJ45 crimping tool is a type of crimping tool used to attach a connector called RJ45 to Ethernet cables. RJ45 connectors are the ones we use for internet cables, which help your computer, gaming console, or TV connect to the internet.

You might have heard of Ethernet cables if you use the internet at home. They usually have a RJ45 connector at the end. The RJ45 crimping tool makes sure that the connector is attached to the cable so that your devices can talk to each other and get a good connection.

Why Do You Need an RJ45 Crimping Tool?

Here are some reasons why you might need an RJ45 crimping tool:

1. Make Custom Cables – Sometimes, the internet cable you have is either too long or too short. With an RJ45 crimping tool, you can make your own cables that are just the right size.

2. Fix Broken Cables – If the connector at the end of your Ethernet cable is broken, you can use an crimping tool to replace it and make the cable work again.

3. Save Money – Instead of buying new cables every time one breaks, you can use the crimping tool to repair or create new cables. This can save you money in the long run!

How Does an RJ45 Crimping Tool Work?

Using an RJ45 crimping tool is easy! Here’s how it works:

1. Step 1: Prepare the Cable – First, you need to strip off the outer covering of the Ethernet cable to expose the colorful wires inside.

2. Step 2: Arrange the Wires – The wires inside the cable need to be arranged in the right order. There are two main ways to arrange the wires: T568A and T568B. Make sure you pick one way and stick to it.

3. Step 3: Insert the Wires into the RJ45 Connector – Once the wires are in the right order, you put them into the RJ45 connector. Each wire needs to go into a separate hole inside the connector.

4. Step 4: Crimp the Connector – Now, take your RJ45 crimping tool and place the connector inside it. Press down on the crimping tool until you hear a small click. This makes the metal pins inside the connector press down on the wires, holding them in place.

5. Step 5: Test the Cable – After crimping, you should test your cable to make sure it works. You can use a special tool called a network tester to check if the cable is working correctly.

Why Do You Need a Crimping Tool?

Without a crimping tool, you wouldn’t be able to attach connectors to the ends of your cables, which means your cables wouldn’t work properly. Whether you’re making new cables or fixing old ones, a crimping tool is very important for creating a good connection.

Types of Crimping Tools

There are different types of crimping tools, depending on what kind of connectors you are working with:

1. RJ45 Crimping Tool – This is the most common tool for making Ethernet cables. It’s used for crimping RJ45 connectors onto Ethernet cables.

2. RJ11 Crimping Tool – This is similar to the RJ45 crimping tool, but it’s used for making telephone cables, which are smaller than Ethernet cables.

3. Coaxial Crimping Tool – This tool is used for crimping cables that connect your TV or cable internet.

How to Choose the Right Crimping Tool?

When picking an RJ45 crimping tool, here are some things to think about:

1. Comfort – Make sure the tool feels comfortable in your hand. You may need to use it for a while, so it should be easy to hold.

2. Quality – Choose a tool that’s strong and made of good materials so it lasts longer.

3. Price – Crimping tools can be found at different prices. You don’t need the most expensive one, but it’s worth getting a quality tool that will last.

Tips for Using an RJ45 Crimping Tool

Here are some tips to get the best results when using an RJ45 crimping tool:

1. Use the Right Size Cable – Make sure the Ethernet cable you’re using fits with the RJ45 connector. If it’s too thick or too thin, the crimping tool might not work well.

2. Check the Wiring – Before crimping, check that the wires inside the cable are in the correct order. If they’re not, the cable won’t work properly.

3. Don’t Over-Crimp – Don’t press the crimping tool too hard. Just enough to make sure the connector is securely attached.

4. Test the Cable – Always test your cable after crimping it to make sure it’s working. You can use a network tester for this.

Final Thoughts on Crimping Tools

In conclusion, a crimping tool is an important tool if you want to make or fix Ethernet cables. The RJ45 crimping tool is perfect for connecting your devices to the internet by attaching RJ45 connectors to the ends of your cables. With a crimping tool, you can make sure your cables work properly and save money by creating your own custom cables.
