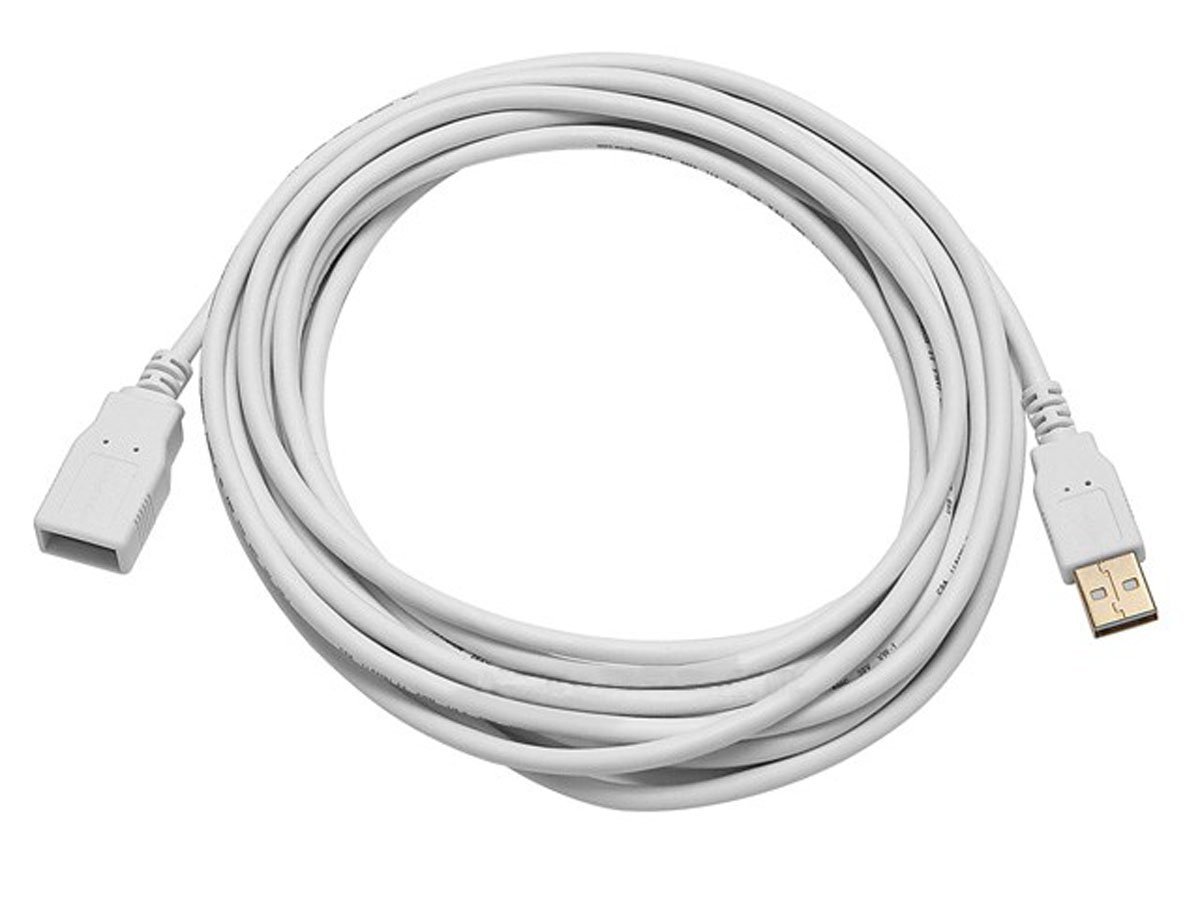

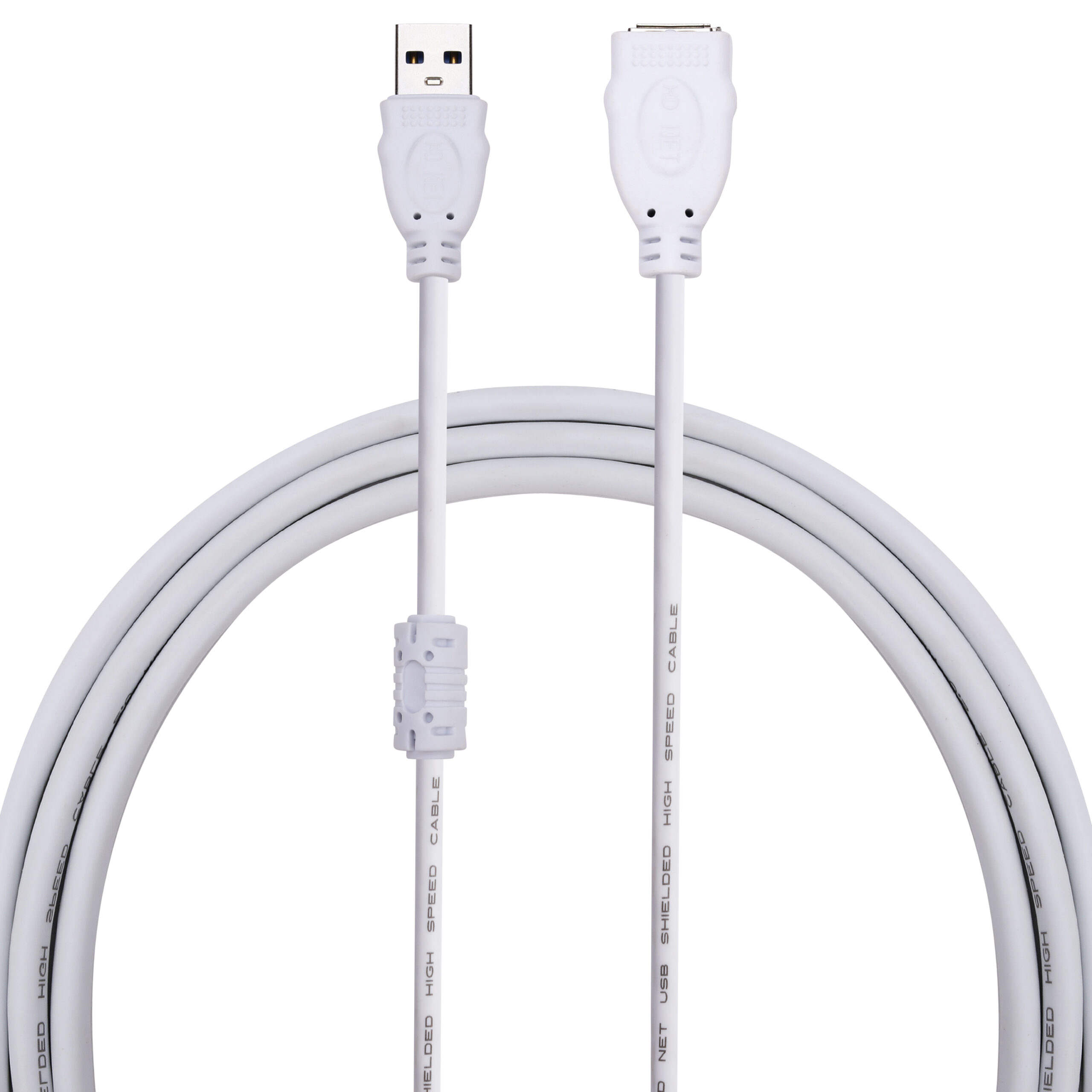

USB EXTENSION CABLE WHITE 10 M AD-UE-104

The ADNET USB Extension Cable White 10M is a long-distance solution designed to extend the reach of your USB 2.0 devices. Given its length, it’s particularly important to understand its capabilities and potential limitations.

Here’s a detailed description:

Purpose: This 10-meter (approximately 33 feet) USB extension cable is primarily used to connect USB peripherals that are located a significant distance from your host device (computer, laptop, smart TV, gaming console, etc.). It’s ideal for situations where a standard 1.5m or 5m cable simply isn’t long enough, such as:

• Connecting a printer or scanner across a large room.
• Extending a webcam for security monitoring.
• Reaching a Wi-Fi dongle or a USB-powered light.
• Setting up gaming peripherals further away from the console.

Key Features and Specifications (Typical for ADNET 10M USB Extension Cable):

• Length: 10 meters (approximately 33 feet). This is a considerable length for a USB cable.
• Color: White, which can blend well with lighter-colored walls, desks, or devices.
• Connector Type: Features a USB Type-A Male connector on one end and a USB Type-A Female connector on the other. This standard configuration allows you to connect it to a USB port and then plug in your existing USB device cable.
• USB Version: For a 10-meter passive (non-active) cable, it is almost exclusively USB 2.0 compatible. This means it supports data transfer speeds of up to 480 Mbps (megabits per second). While USB 3.0 offers much higher speeds (up to 5 Gbps), passive USB 3.0 cables typically lose reliability beyond 3 meters. If you need USB 3.0 speeds over 10 meters, you would require an active (repeater) USB extension cable which has a built-in signal amplifier. Some listings for “ADNet 10Mtr USB Extension Cable” explicitly state “High Speed” which refers to USB 2.0’s 480 Mbps.
• Data Transfer and Power: Designed to support both data communication and the necessary power delivery for connected USB 2.0 devices.
• Construction:
  • Conductor Material: Often specified as “Pure Copper” to ensure good conductivity and minimize signal loss over the extended length. This is crucial for maintaining signal integrity.
  • Shielding: Includes multiple layers of shielding (foil and braid) to effectively reduce Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). Twisted pair construction further helps in reducing crosstalk, ensuring more stable and error-free data transmission.
  • Insulation Material: Typically made with PVC (Polyvinyl Chloride) for insulation and the outer jacket, providing durability and flexibility.
  • Connectors: May feature gold-plated contacts for corrosion resistance and improved signal quality, along with molded strain relief for enhanced cable lifespan at the connection points.
• Plug and Play: As with most USB cables, it’s designed for simple “plug and play” operation, requiring no additional drivers or software installation.
• Compatibility: Broadly compatible with a wide range of USB 2.0 peripherals, including:
  • Printers, Scanners
  • Keyboards, Mice
  • Webcams, USB security cameras
  • USB Flash Drives
  • Wi-Fi dongles
  • USB hubs (though active hubs might be preferred for very power-hungry devices at this length)
  • Gaming controllers
  • Other USB-powered devices.

Important Considerations for a 10M USB Extension Cable:

• Passive vs. Active: A 10-meter passive USB cable (like most standard ADNET offerings at this length) is pushing the limits of the USB 2.0 specification for reliable data and power transmission. For optimal performance, especially with power-hungry devices or those requiring consistent, high-speed data, an active USB 2.0 extension cable (which has a built-in repeater chip to boost the signal) is generally recommended at this length. Some ADNET models might indeed be active, so checking the specific product details is crucial.
• Power Delivery: Longer cables lead to greater voltage drop. This means devices that draw significant power (e.g., some external hard drives without their own power supply, or certain webcams) might not function reliably or at all due to insufficient power. In such cases, using a self-powered USB hub at the end of the extension cable, or an active extension cable with an external power input, would be necessary.
• Data Integrity: While shielding helps, very long passive cables can still be susceptible to minor signal degradation, potentially leading to intermittent connectivity or slower-than-expected data rates, especially in electrically noisy environments.
• Application Suitability: It’s best suited for USB 2.0 applications where the primary need is extended reach and moderate data transfer. For high-bandwidth applications like uncompressed video streaming from certain cameras, or connecting fast external SSDs, an active USB 3.0+ extension or alternative solutions (like USB over Ethernet) would be more appropriate.

In summary, the ADNET USB Extension Cable White 10M provides a convenient way to extend USB 2.0 connectivity over a long distance. For critical applications or power-demanding devices, verifying if it’s an active cable or planning to use a powered hub is highly advisable.
