RJ 45 CAT 6(8P8C) PASS THROUGH CONNECTOR(100Pc Pack) AD-PTC-387

An RJ45 CAT6 (8P8C) Pass Through Connector (100Pc Pack) is a type of modular plug used to terminate Cat6 Ethernet cables, designed with a “pass-through” feature for easier and more reliable installations. Here’s a detailed description:

Key Features and Description:

• RJ45 (Registered Jack 45): This is a standard type of connector for network cables, widely used for Ethernet connections. It’s the male plug that inserts into the RJ45 port on devices like computers, routers, switches, and modems.
• CAT6 (Category 6): This indicates that the connectors are designed to meet or exceed Cat6 cable specifications. Cat6 cables support Gigabit Ethernet (1 Gbps) and can support 10 Gigabit Ethernet over shorter distances (up to 55 meters). These connectors are often backward compatible with Cat5 and Cat5e cables.
• 8P8C (8 Position, 8 Conductor): This describes the physical configuration of the connector. It means it has 8 positions for electrical contacts and all 8 positions are populated with conductors. This is the standard configuration for Ethernet cables, where all eight wires of a twisted pair cable are used for data transmission.

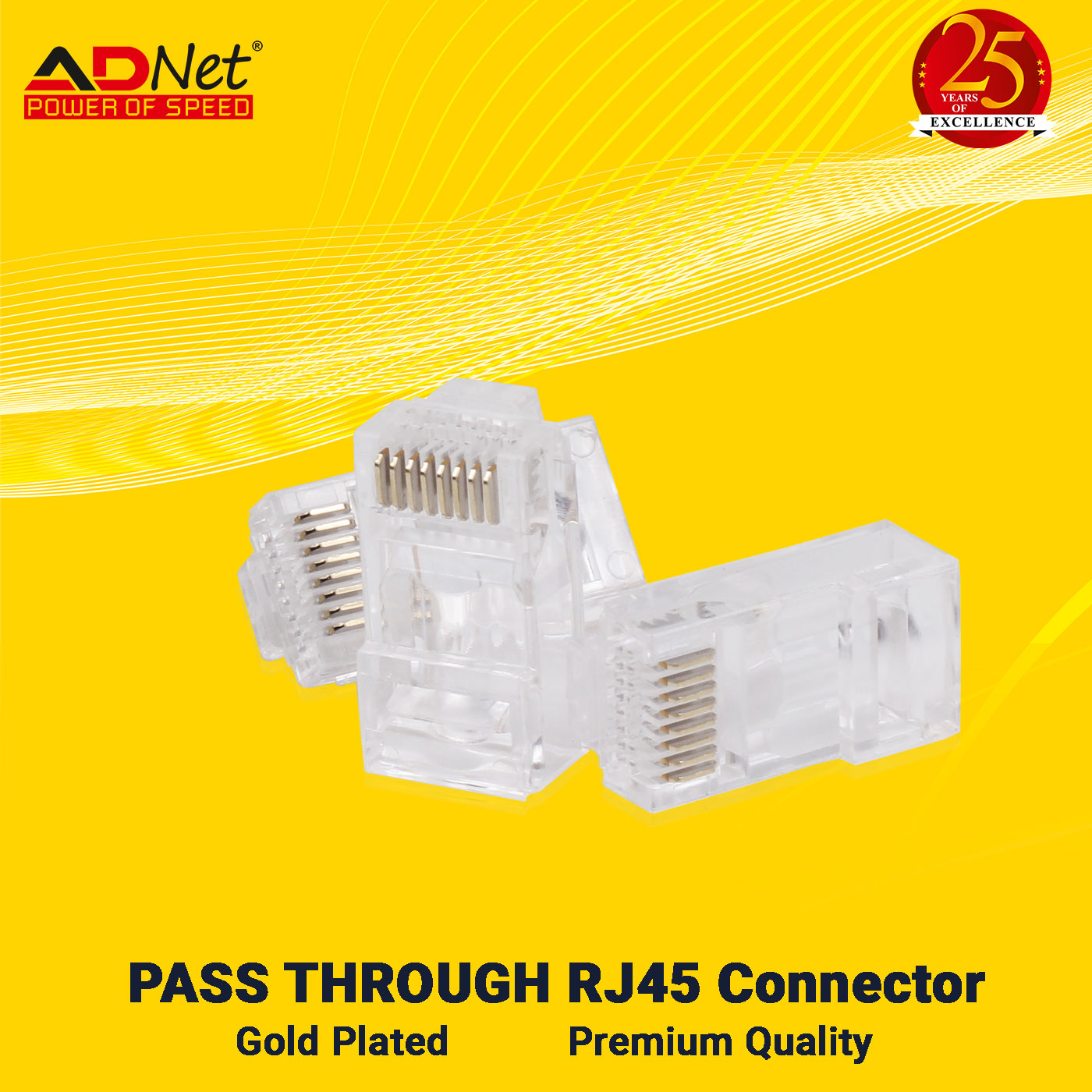

• Pass-Through Design: This is the distinguishing feature. Unlike traditional RJ45 connectors where wires are trimmed before insertion, pass-through connectors allow the individual wires of the Ethernet cable to extend completely through the front of the connector.
• Benefits of Pass-Through:
  • Easier Wire Alignment and Verification: The transparent housing and the ability to see the wires pass through the connector make it significantly easier to verify the correct wiring sequence (T568A or T568B) before crimping. This greatly reduces errors and wasted connectors/cable.
  • Improved Signal Integrity: The pass-through design allows the cable jacket to be seated further into the connector, maintaining the twists in the wire pairs closer to the contacts. This minimizes crosstalk and signal loss, leading to a more reliable connection and better network performance.
  • Reduced Termination Time: For many installers, this design speeds up the termination process due to the simplified wire management.

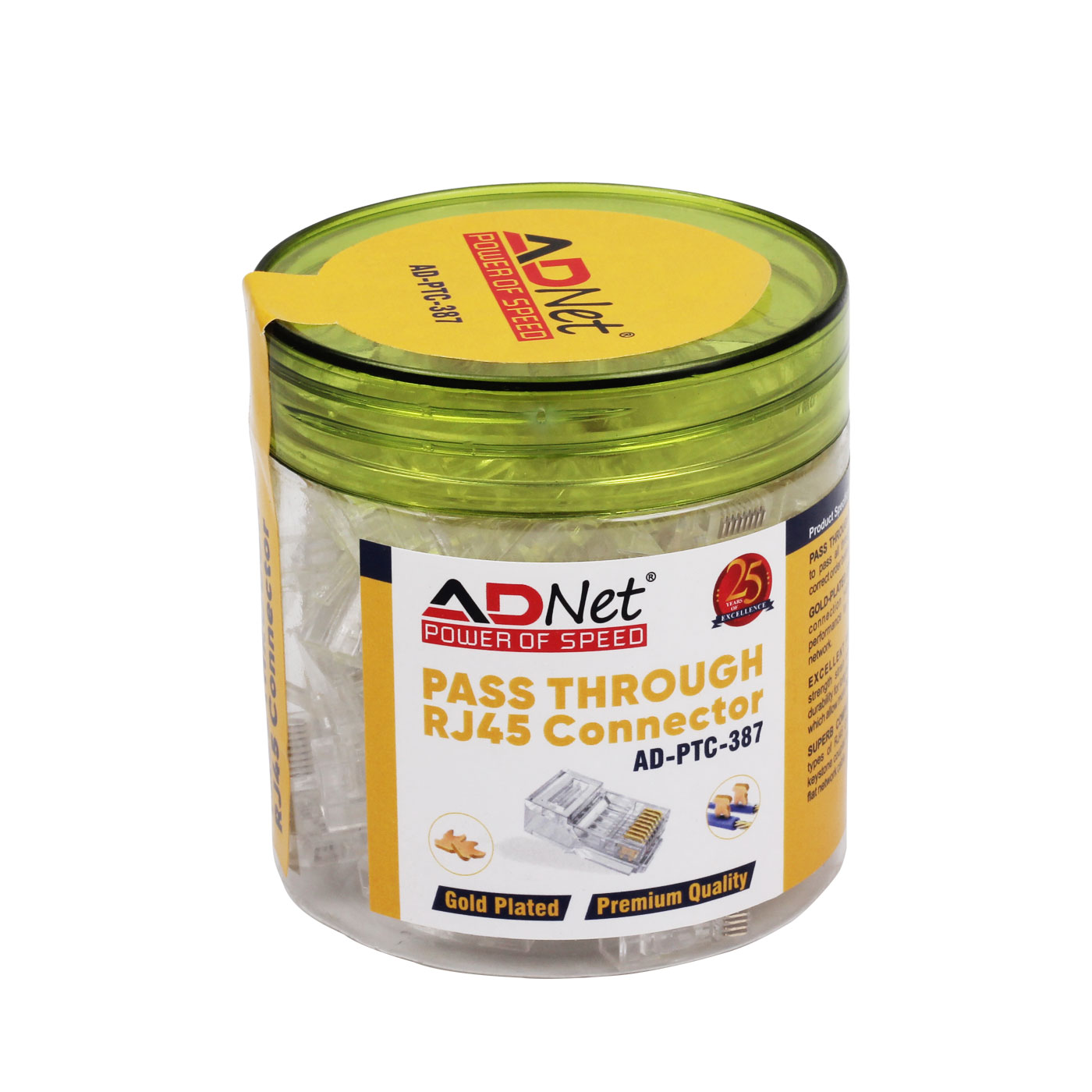

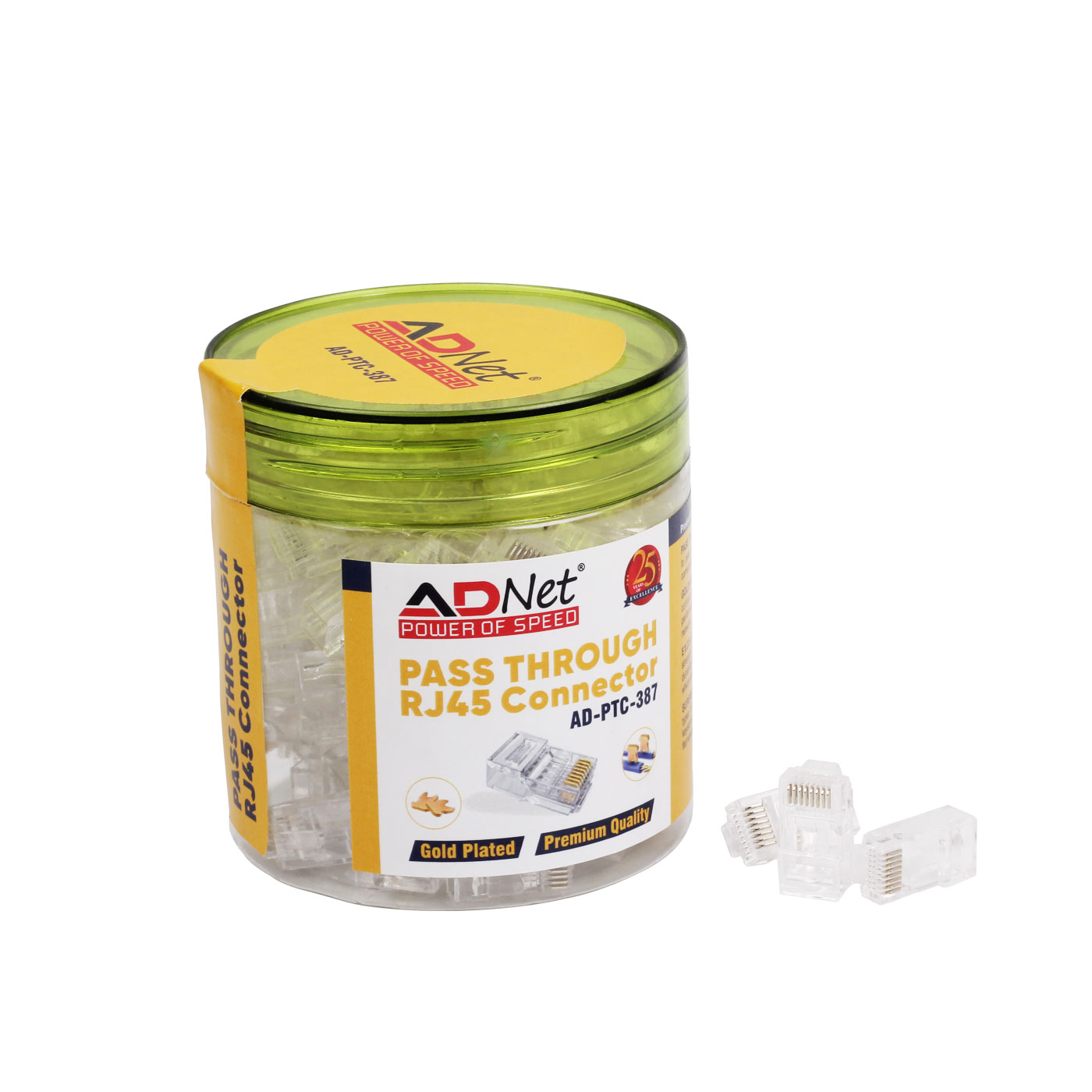

• 100-Piece Pack: The connectors are typically sold in bulk packs of 100, providing convenience and cost-effectiveness for professionals and DIY enthusiasts who frequently make custom-length Ethernet cables.
• Gold-Plated Contacts: Most quality RJ45 connectors feature gold-plated contacts (e.g., 50-micron gold plating). Gold provides superior conductivity and corrosion resistance, ensuring long-lasting performance and reliable data transmission.

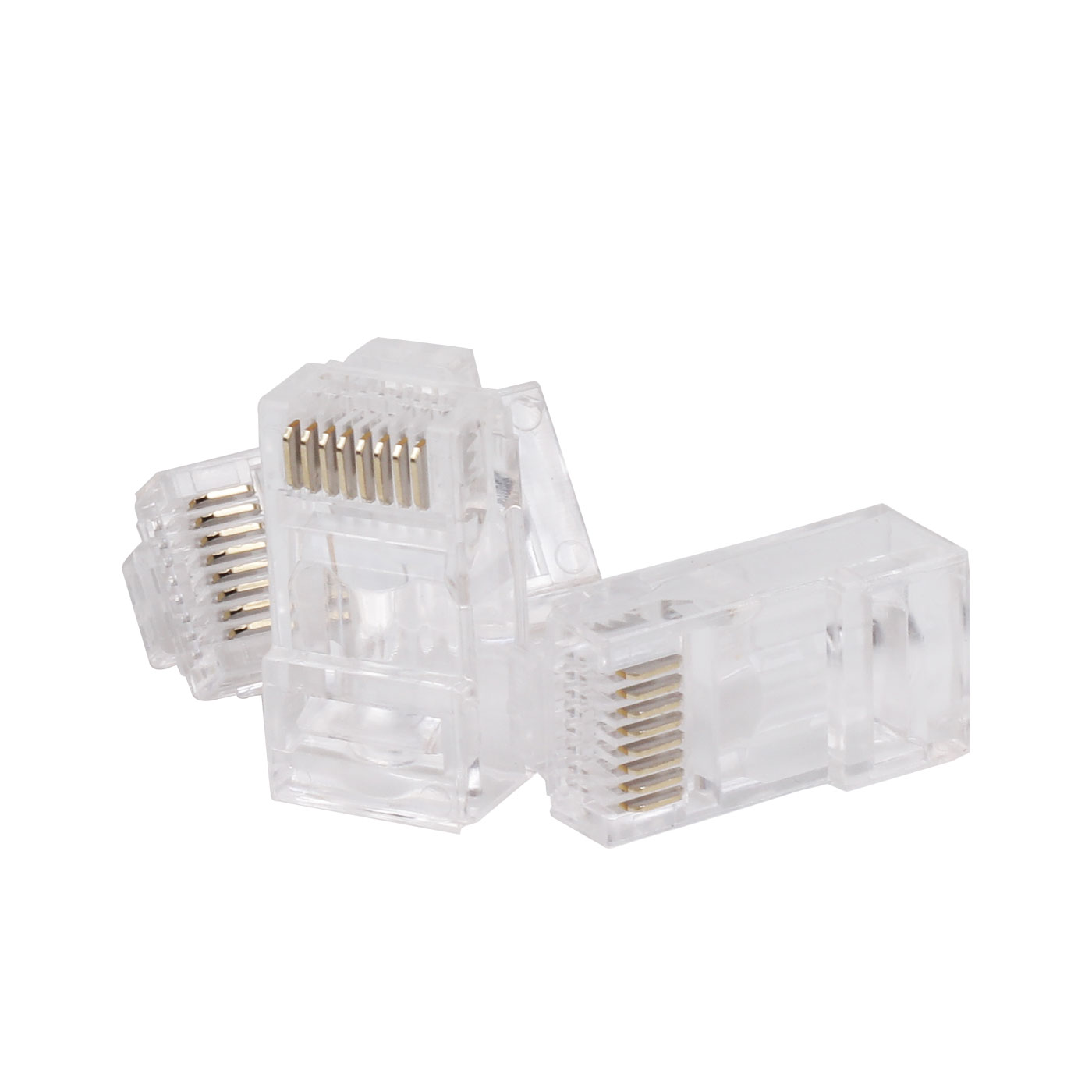

• Durable Construction: The housing is typically made from clear, durable polycarbonate, offering good structural integrity and allowing for visual inspection of wire placement.
• Compatibility: These connectors are designed to be used with a pass-through crimping tool, which simultaneously crimps the connector onto the cable and trims the excess wires flush with the connector face. They are compatible with both solid and stranded copper Ethernet cables, typically 23AWG to 26AWG.
• Applications: Ideal for creating custom-length Ethernet patch cords for home networks, office LAN setups, data centers, IT infrastructure, surveillance camera systems, gaming setups, smart homes, and various other networking needs.
  In essence, an RJ45 CAT6 (8P8C) Pass Through Connector (100Pc Pack) offers a user-friendly and efficient solution for reliable Cat6 Ethernet cable terminations, minimizing errors and optimizing network performance
