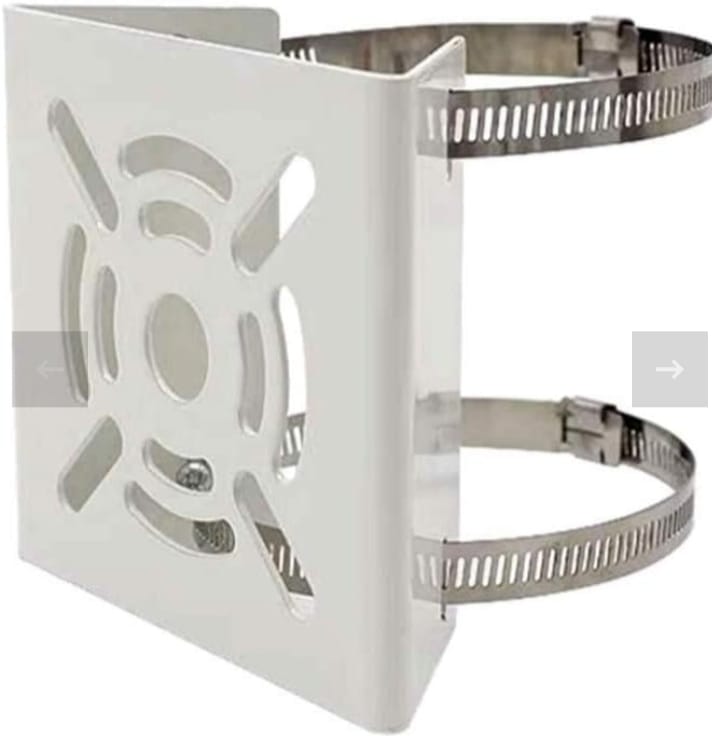

The Pole Mount Camera Clamp Bracket with 2 nos 100mm SS Loops is a versatile and durable mounting solution designed to securely attach CCTV security cameras to vertical poles, railings, or cylindrical structures for both indoor and outdoor surveillance applications.
This bracket serves as an adapter, allowing cameras that are typically designed for flat wall or ceiling mounting to be affixed to a pole.
Key Features and Specifications
Feature
Description
Primary Function
Securely mounts CCTV, IP, dome, or bullet cameras to poles, columns, or similar vertical structures.
Material
Typically made from heavy-duty metal (e.g., steel or aluminum alloy) with a powder-coated or corrosion-resistant finish for durability. The loops are Stainless Steel (SS).
Compatibility
Universal design, compatible with most major brands and types of CCTV security cameras (e.g., supporting 1MP to 12MP cameras).
Mounting Mechanism
Uses a clamp-style bracket and two Stainless Steel (SS) looping rings/hoops to wrap around and tightly secure the bracket to the pole.
Loop Size

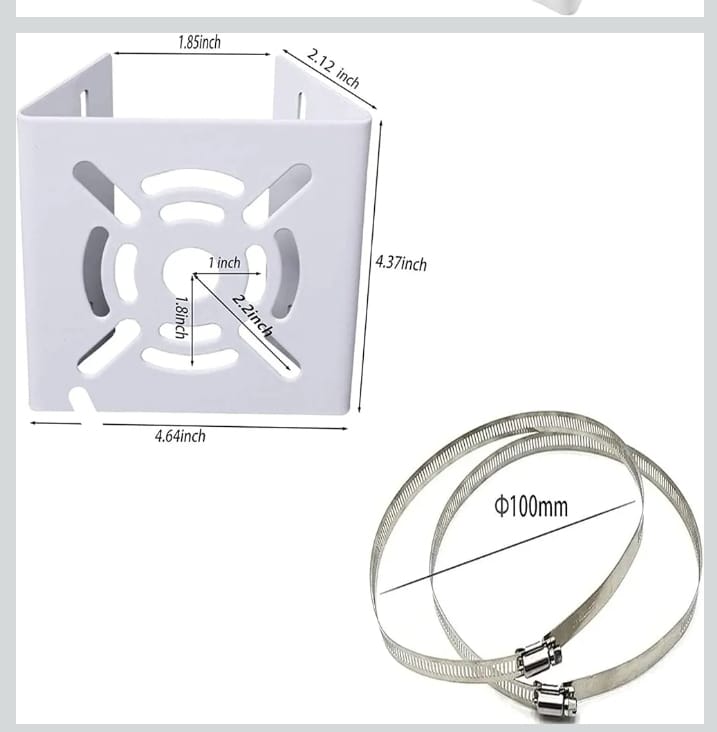

Includes 2 pieces of 100mm SS loops (Stainless Steel hoops). This size generally accommodates a maximum pole diameter of approximately 100mm to 120mm (around 4 to 4.7 inches), though the clamping range is adjustable.
Load Capacity
Designed to handle the weight of a standard security camera, typically with a load-bearing capacity of up to 5 kg (approx. 11 lbs).
Usage Environment
Suitable for both Indoor and Outdoor installation, as the metal construction and finish are designed to be weather-resistant (withstanding rain, sun, etc.).
Installation
Easy to install with a user-friendly design, requiring minimal tools. The adjustable loops allow for a tight fit on various column sizes within their specified diameter range.
Color
Often comes in a neutral color White to blend with most outdoor/indoor environments.
