Primary Function: Used to efficiently terminate network and telephone wires into Information Outlet Jacks and Insulation-displacement connectors (IDCs)
Spring Mechanism:Delivers a precise, controlled force for consistent terminations.
Removable Blade:Interchangeable to match different IDC type
Essential for Network and Telecom Wire Termination
Product Overview

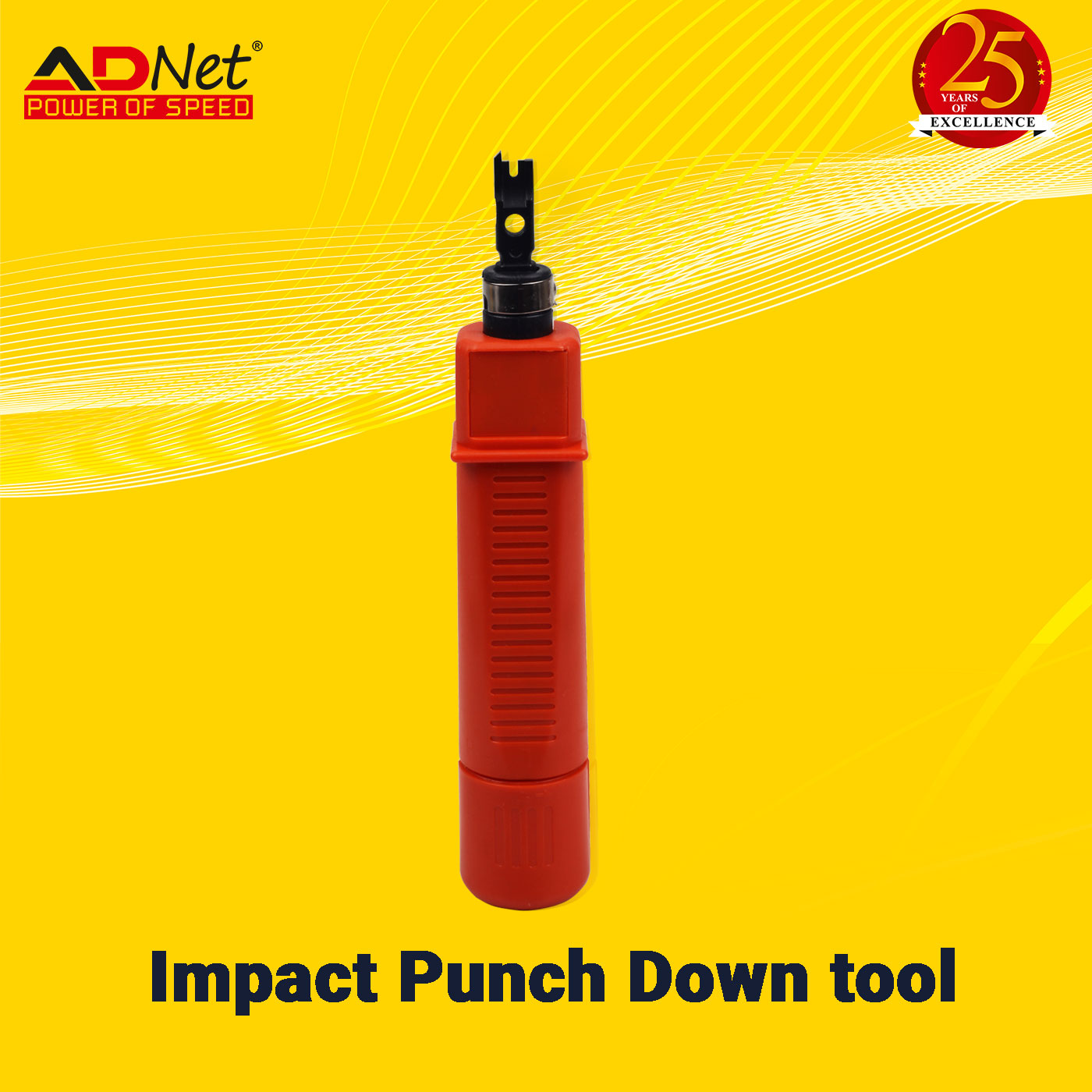

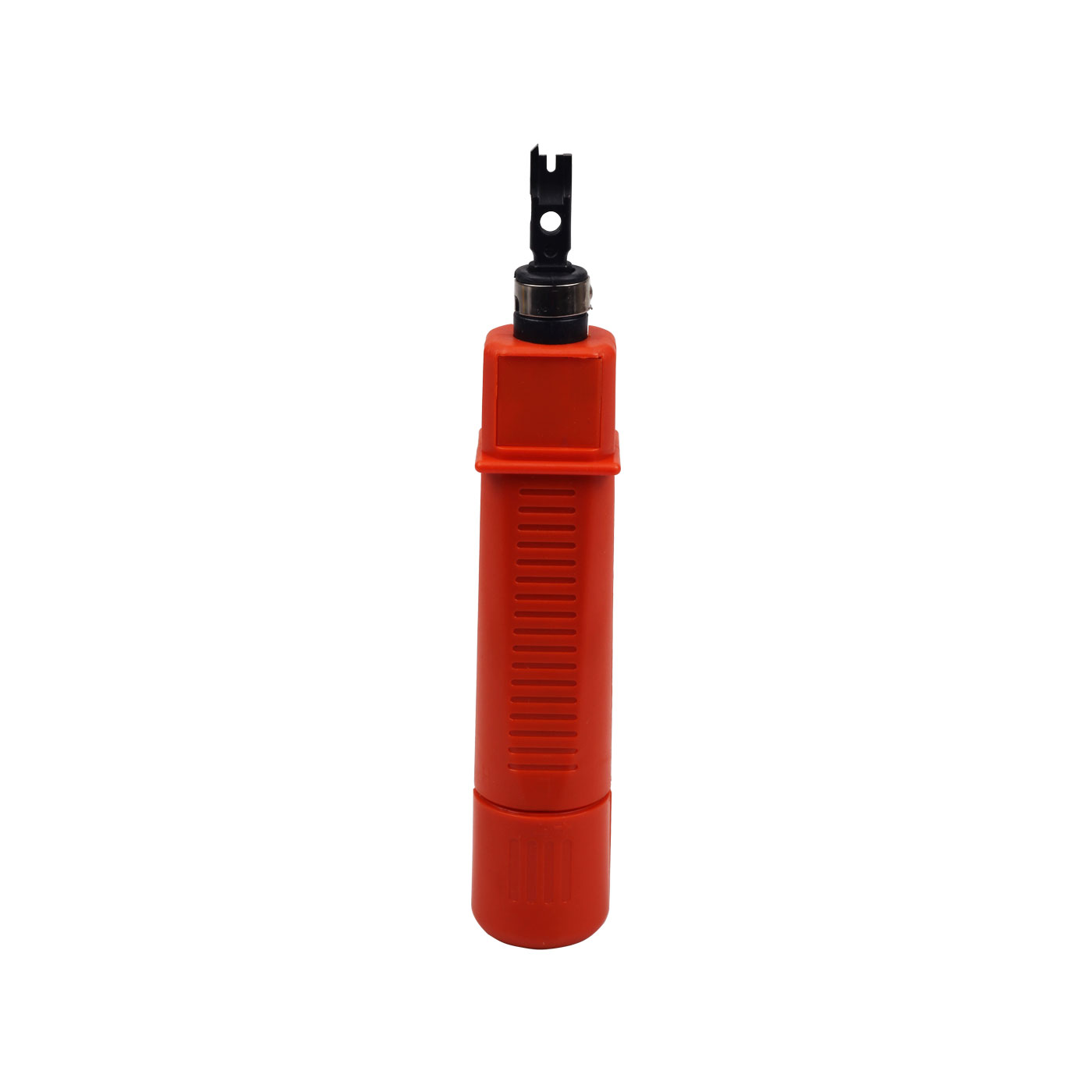

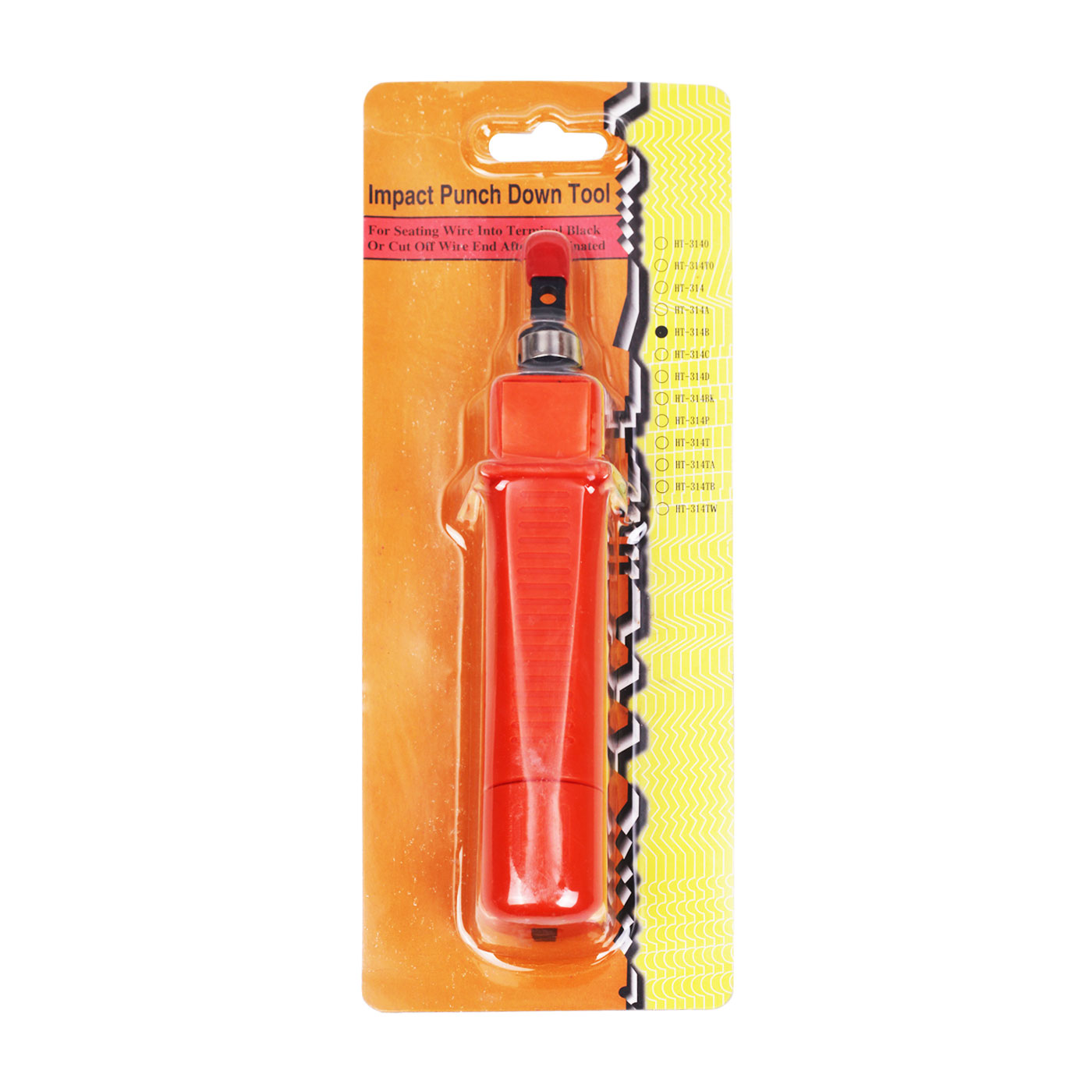

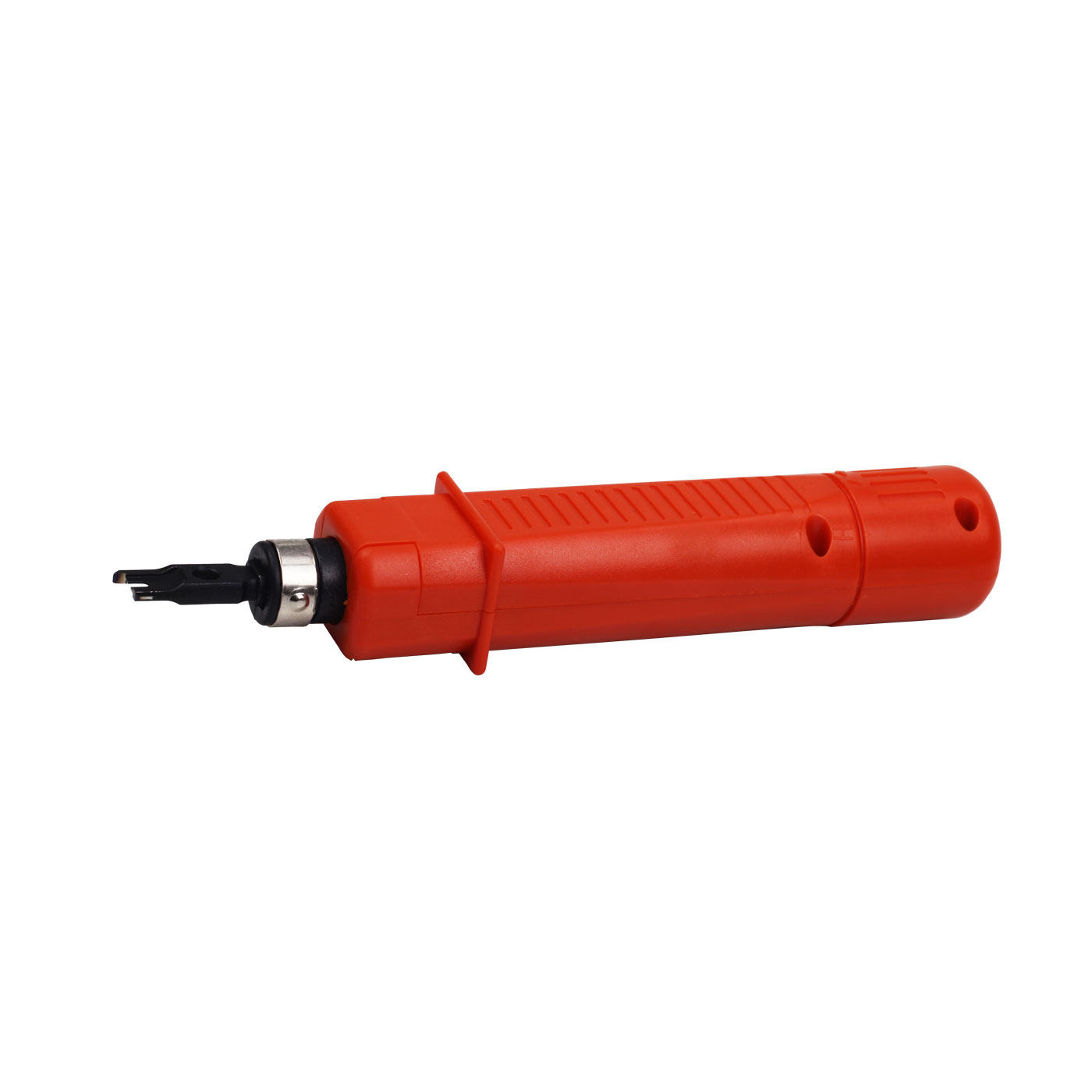

The Impact Punch Down Tool—also known as a punch down or block termination tool—is a specialized hand tool used by network installers and telecom professionals to terminate wires into insulation-displacement connectors (IDCs) efficiently and reliably. Designed for high-volume installations, this tool delivers clean, consistent connections critical to structured cabling systems.
Primary Functions
1. Wire Insertion
The tool pushes individual wires from twisted pair network cables (e.g., Cat5e, Cat6, Cat6A) directly into V-shaped IDC slots. It is compatible with a range of network hardware including:
Punch Down Blocks: For managing and distributing network or telephone lines
Patch Panels: Centralized cable management for flexible network configurations
Keystone Modules: Snap-in jacks used in wall plates and patch panels
Surface Mount Boxes (Biscuit Jacks): Compact enclosures for single-line terminations
2. Wire Trimming
Equipped with a built-in cutting edge, the tool automatically trims excess wire during termination. This keeps terminations clean and eliminates manual snipping, saving time and effort.
3. Secure Electrical Connection
The spring-loaded “impact” mechanism ensures wires are forcefully and precisely pressed into the IDC slots. This action pierces the insulation, creating a gas-tight and corrosion-resistant connection between the wire and metal contact.
Key Design Features
Spring Mechanism (Impact Action): When sufficient pressure is applied, the internal spring releases a sharp, consistent force that punches the wire into the connector.
Replaceable Blade: Blades can wear over time, so the design allows for easy replacement to maintain performance.
Adjustable Impact Force: Some models offer high and low impact settings, enabling technicians to tailor force levels to the cable type or IDC block.
Ergonomic Handle: Designed for extended use, the handle offers a comfortable, non-slip grip that reduces user fatigue.
Why Choose an Impact Punch Down Tool?
Reliable Performance
The impact mechanism delivers consistent, high-integrity connections that minimize signal loss and support long-term network reliability.
Increased Efficiency
Technicians can terminate wires quickly and precisely—ideal for large-scale installations or time-sensitive jobs.
Enhanced Safety
By automatically trimming wires, the tool reduces the risk of stray strands that could lead to short circuits or performance issues.
Ideal For
Structured cabling system installers
Network and telecommunications technicians
IT infrastructure contractors
On-site cable termination in offices, data centers, and commercial facilities
