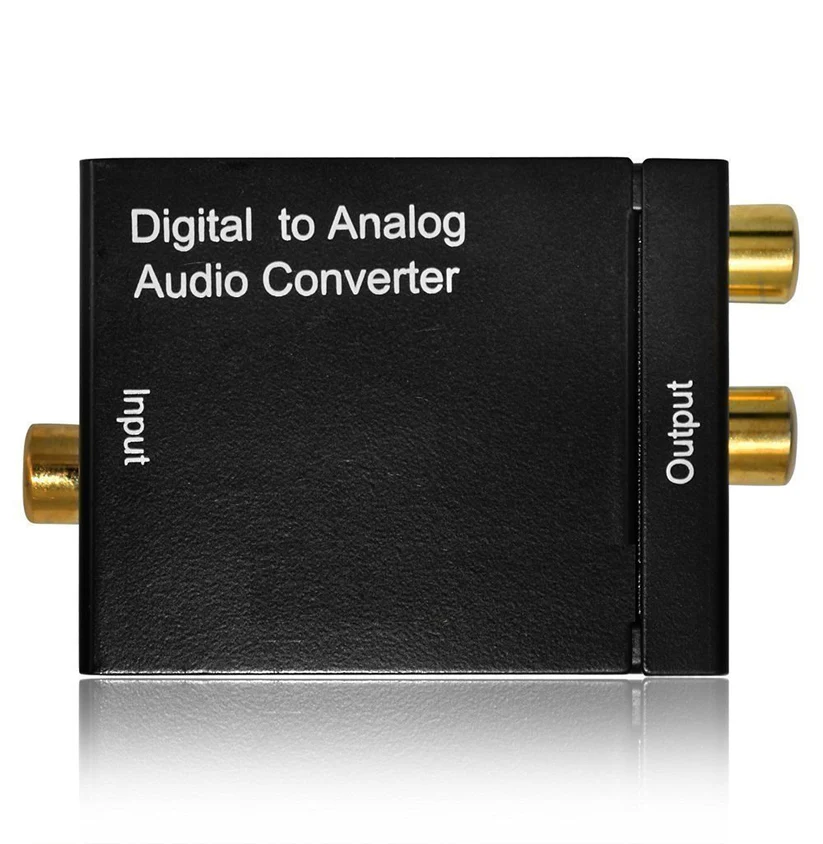

DIGITAL TO ANALOG AUDIO CONVERTER ADNet

A digital-to-analog converter (DAC) is a device that converts a digital audio signal, which is represented by a series of numbers (1s and 0s), into a continuous analog electrical signal. This analog signal can then be used to drive an amplifier, headphones, or speakers, which ultimately produce the sound you hear. DACs are an essential component in any device that plays digital audio, such as smartphones, computers, CD players, and televisions.

Most modern devices have a built-in DAC, but these can vary in quality. For audiophiles or those seeking to improve their sound quality, an external or standalone DAC can be used. These external DACs are designed to provide a more accurate and higher-fidelity conversion, reducing “jitter” (timing errors in the digital signal) and other forms of noise. This results in a cleaner, more dynamic, and detailed sound.

The conversion process involves several steps:

• The digital signal is received and stored in a register.
• The DAC’s internal circuitry, often using a resistor network, assigns a weighted value to each bit of the digital code.
• These weighted values are summed to create a stepwise analog output.
• A low-pass filter is then used to smooth this stepwise signal into a continuous waveform.
• Finally, the analog waveform is amplified and sent to the audio output device.
• The quality of a DAC is often measured by its resolution (bit depth) and sampling rate, which determine the number of possible signal levels and how often the signal is measured, respectively. Higher resolution and sampling rates generally lead to a more accurate and higher-quality conversion.
