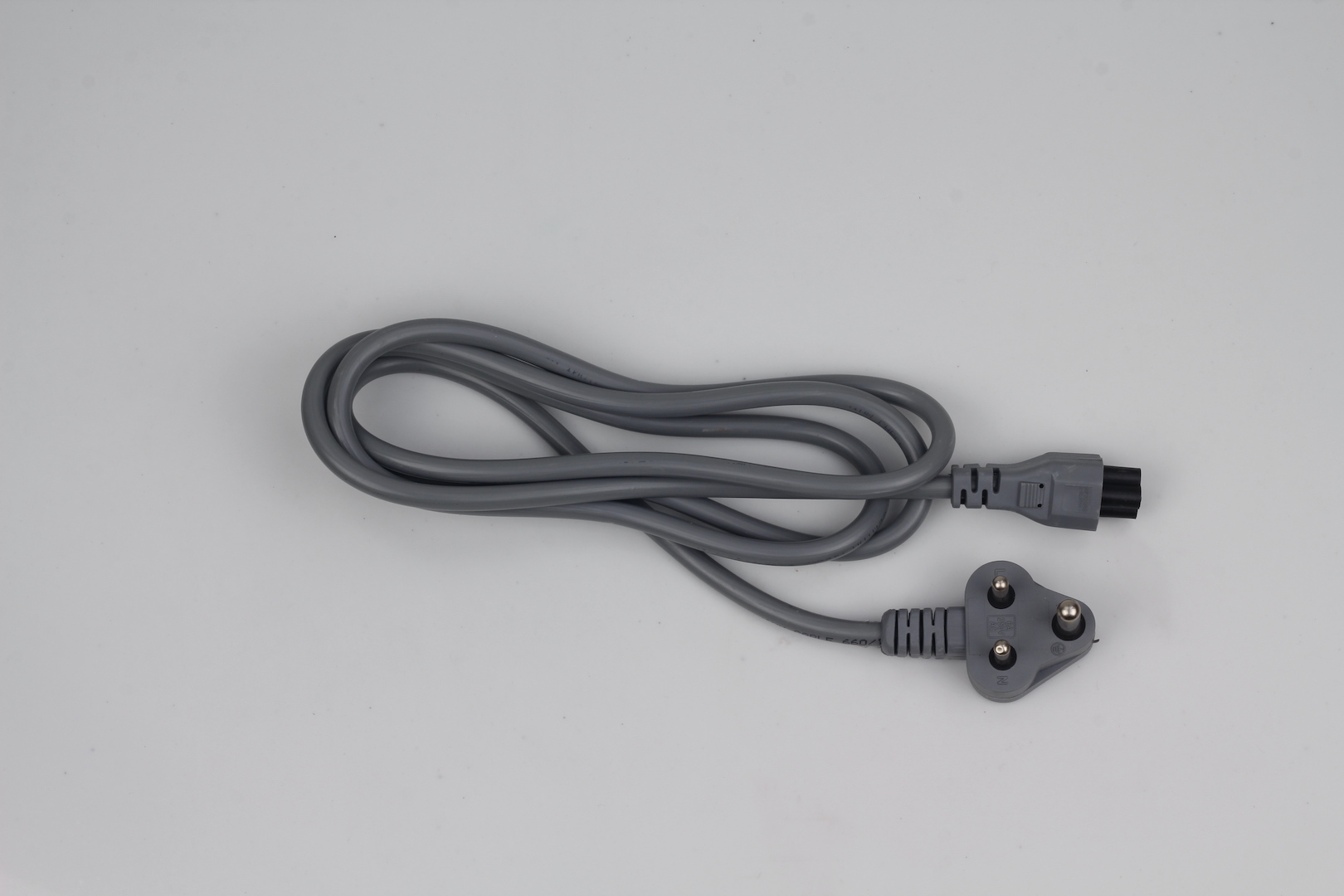

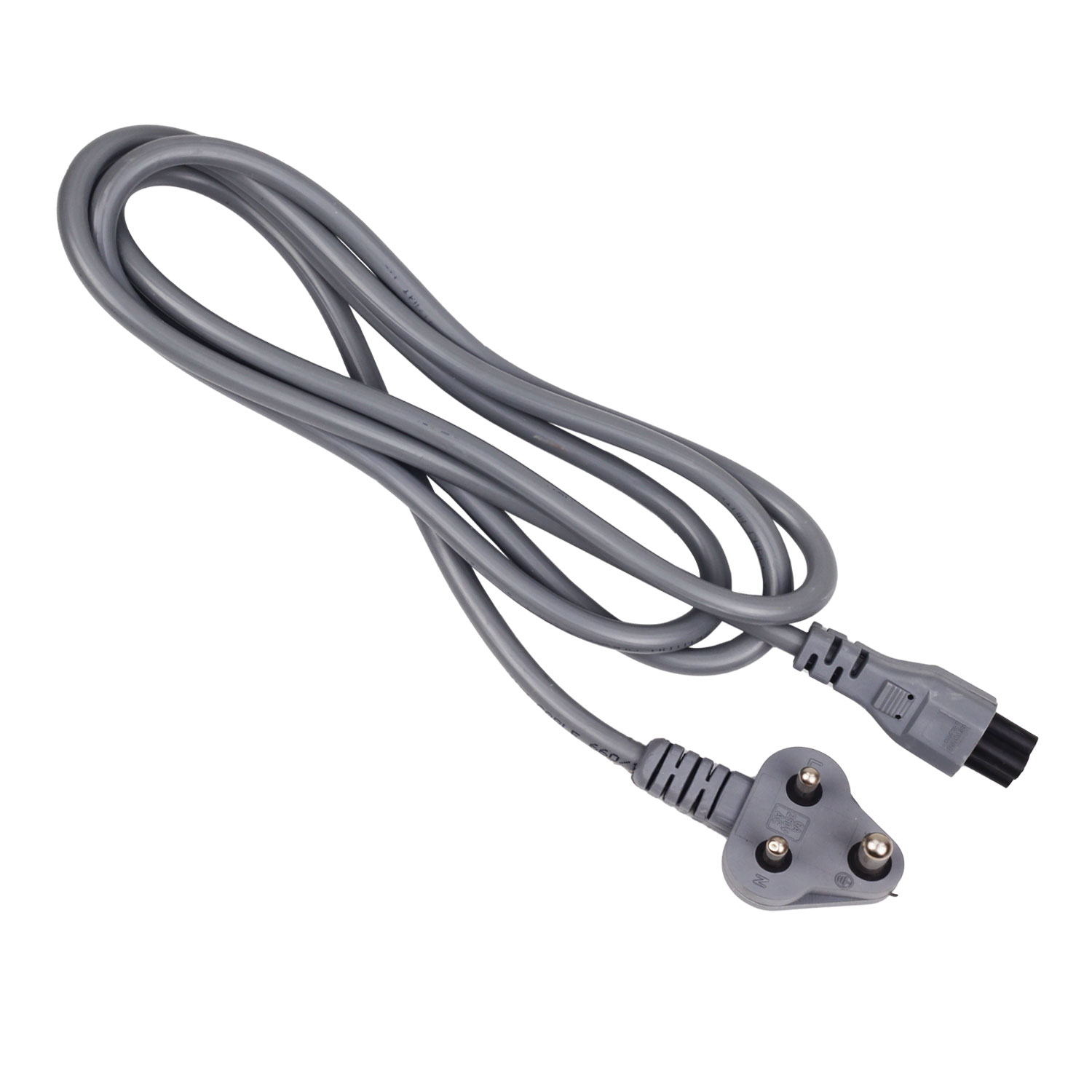

DESKTOP 3PIN POWER CORD 1.8M (POLYPACK ) AD-DP-01

A “3-pin power cord desktop 22 AWG” describes a power cable commonly used for desktop computers and various other electronic devices. Here’s a breakdown of what each part means:

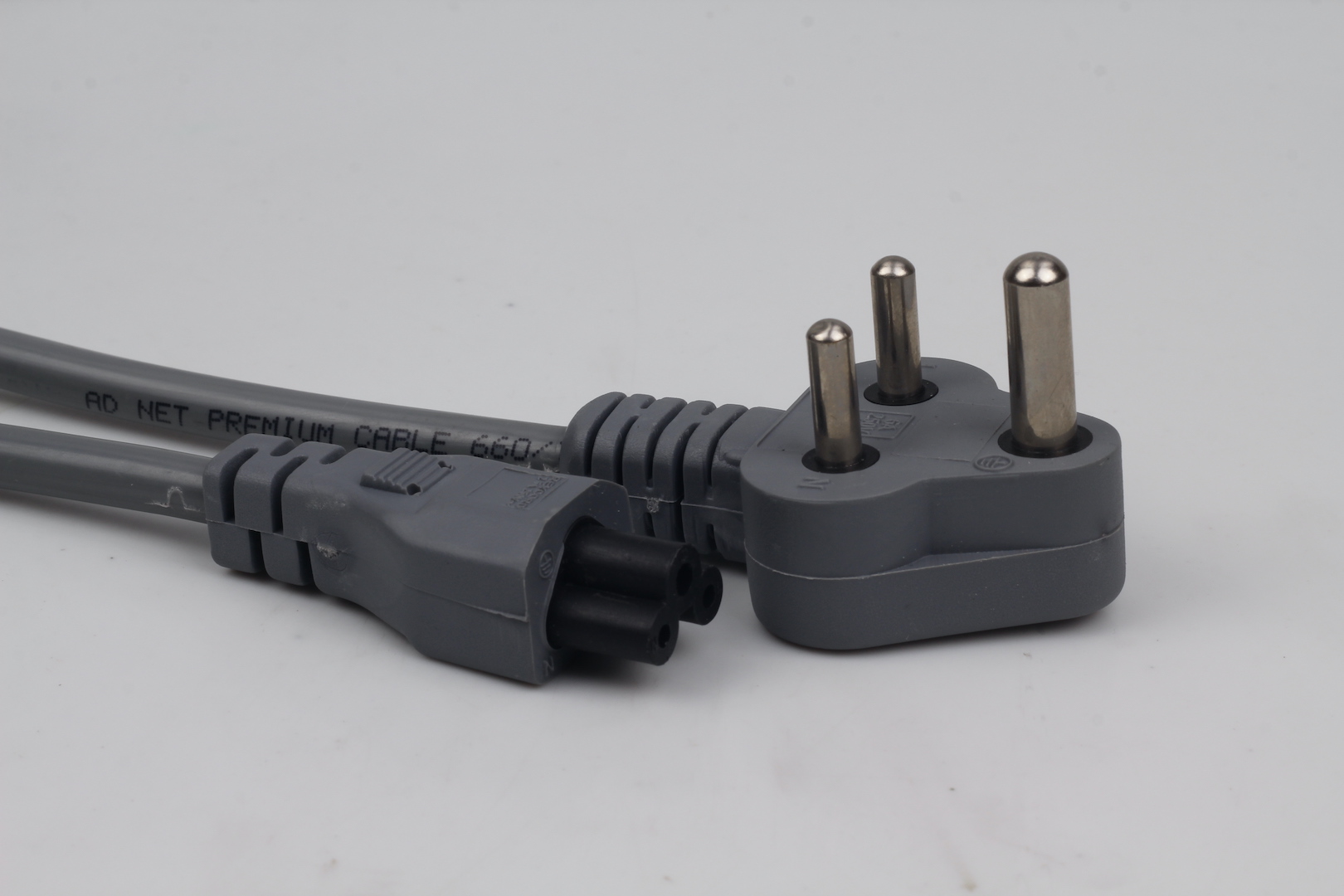

• 3-Pin Power Cord: This refers to the plug end that connects to the wall outlet (or power strip) and typically to an IEC C13 connector on the device end. The three pins consist of:

  • Live (or Hot): Carries the electrical current from the source.
  • Neutral: Provides the return path for the current.
  • Earth (or Ground): A crucial safety feature that provides a path for fault currents to safely dissipate to the ground, preventing electric shock in case of an electrical fault or insulation failure within the appliance. This is why 3-pin plugs are generally preferred for higher-power devices and those with metal casings.

• Desktop: This indicates its primary application. These cords are widely used to power desktop computers, monitors, printers, some larger external hard drives, and other peripherals that utilize the standard IEC C13 inlet.

• 22 AWG: This specifies the wire gauge using the American Wire Gauge (AWG) standard.

  • AWG (American Wire Gauge): This is a standardized system for measuring the diameter of electrical conductors.
  • 22 AWG: In the AWG system, a higher gauge number indicates a thinner wire. A 24 AWG wire is relatively thin. For context, common household wiring might be 12 AWG or 14 AWG, while telephone wire is often 22, 24, or 26 AWG.
  • Implications of 22AWG for a Power Cord: A 22 AWG wire has a smaller cross-sectional area. This means it has a higher electrical resistance and can safely carry less current than a lower gauge (thicker) wire. While some specialized data or low-power circular connectors might use 24 AWG, it is uncommon and generally unsuitable for the main power cord of a desktop computer. Desktop computers, especially those with powerful components, require a thicker gauge wire (like 18 AWG, 16 AWG, or even 14 AWG) to handle the electrical current safely without overheating.

Key considerations and potential issues with a “22 AWG” desktop power cord:

• Ampacity (Current Carrying Capacity): A 22AWG wire typically has a very low ampacity. Using it for a device that draws significant power (like a desktop PC) can lead to:
  • Overheating: The wire can get excessively hot, melting the insulation.
  • Fire Hazard: Severe overheating can lead to electrical fires.
  • Voltage Drop: Thinner wires experience greater voltage drop over length, meaning the device might not receive its full intended voltage, potentially affecting its performance or stability.
• Common Desktop Power Cord Gauges: Standard desktop computer power cords usually use gauges like 18 AWG, 16 AWG, or 14 AWG. These are designed to safely handle the typical power draw of a PC. For heavy-duty server equipment, even thicker gauges like 14 AWG or 12 AWG might be used.

In summary, while a “3-pin power cord” for a “desktop” is a standard item, a “22 AWG” wire gauge for this application is highly unusual and potentially unsafe. It’s crucial to use a power cord with an appropriate wire gauge that meets the power requirements of the device it’s intended to power to ensure safety and proper operation.
