BNC VEDIO BALUN 8MP VIA RJ-45 CABLE AD-PS-373

4K Passive Hd Bnc Video Balun Transceiver Transmitter Via Rj45 Cable

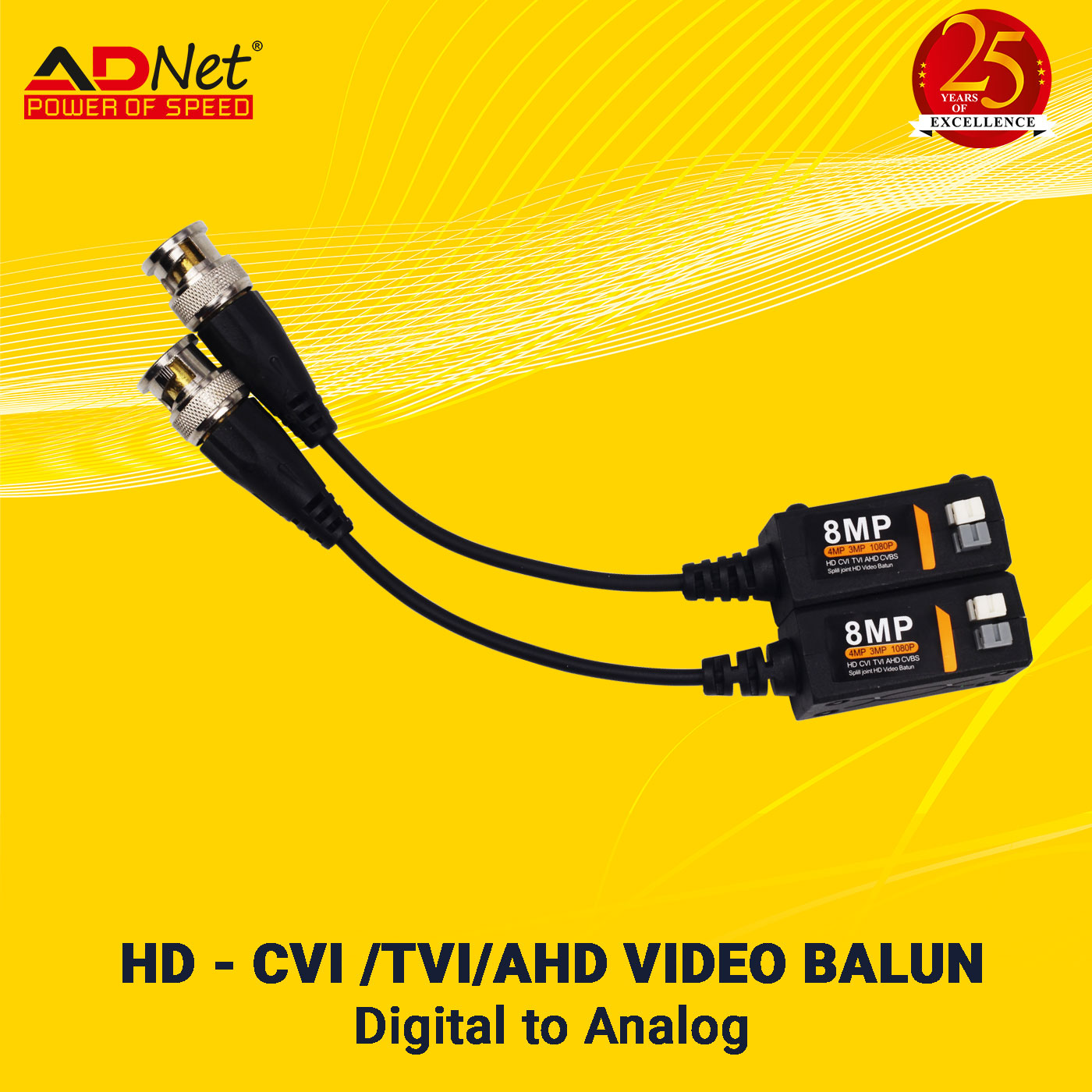

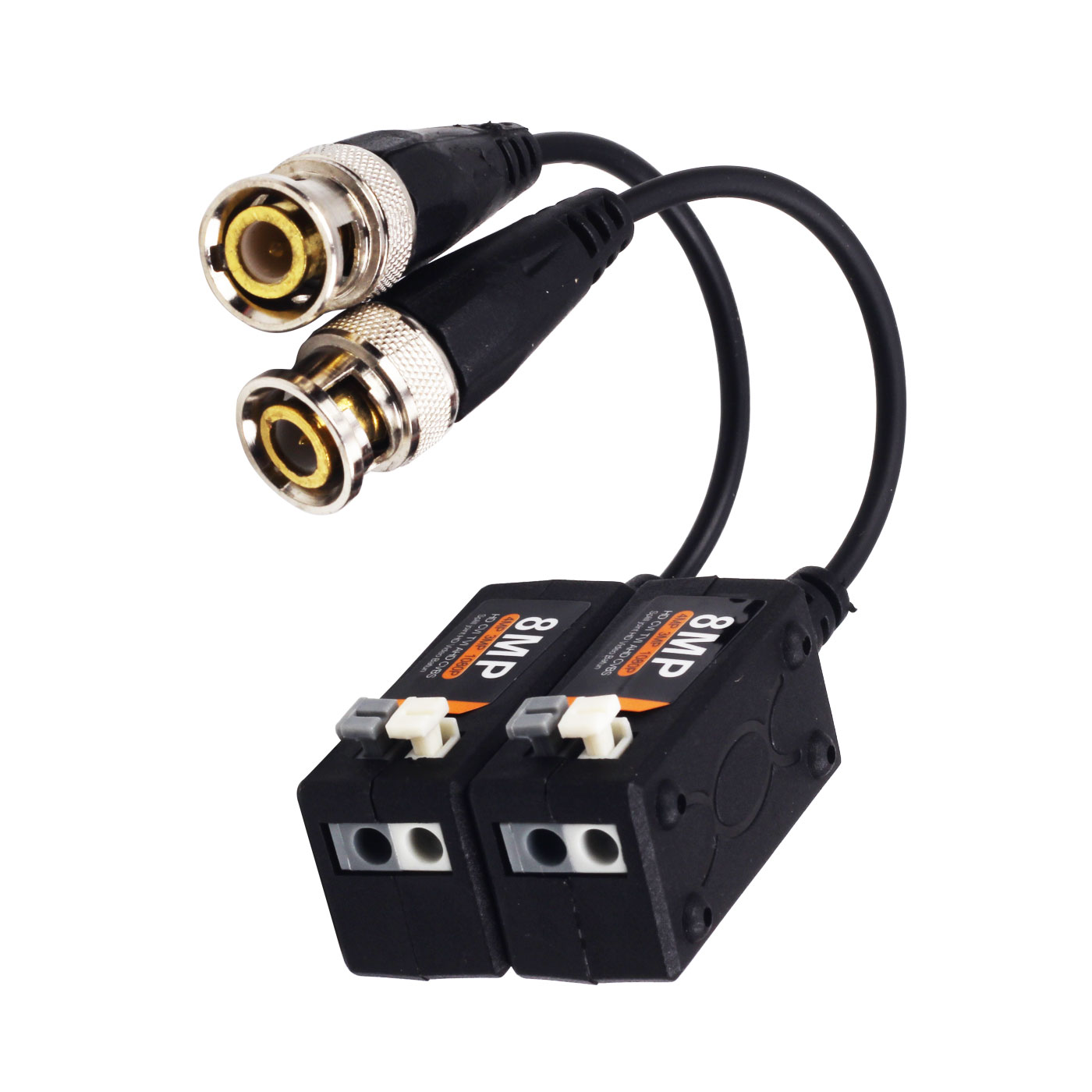

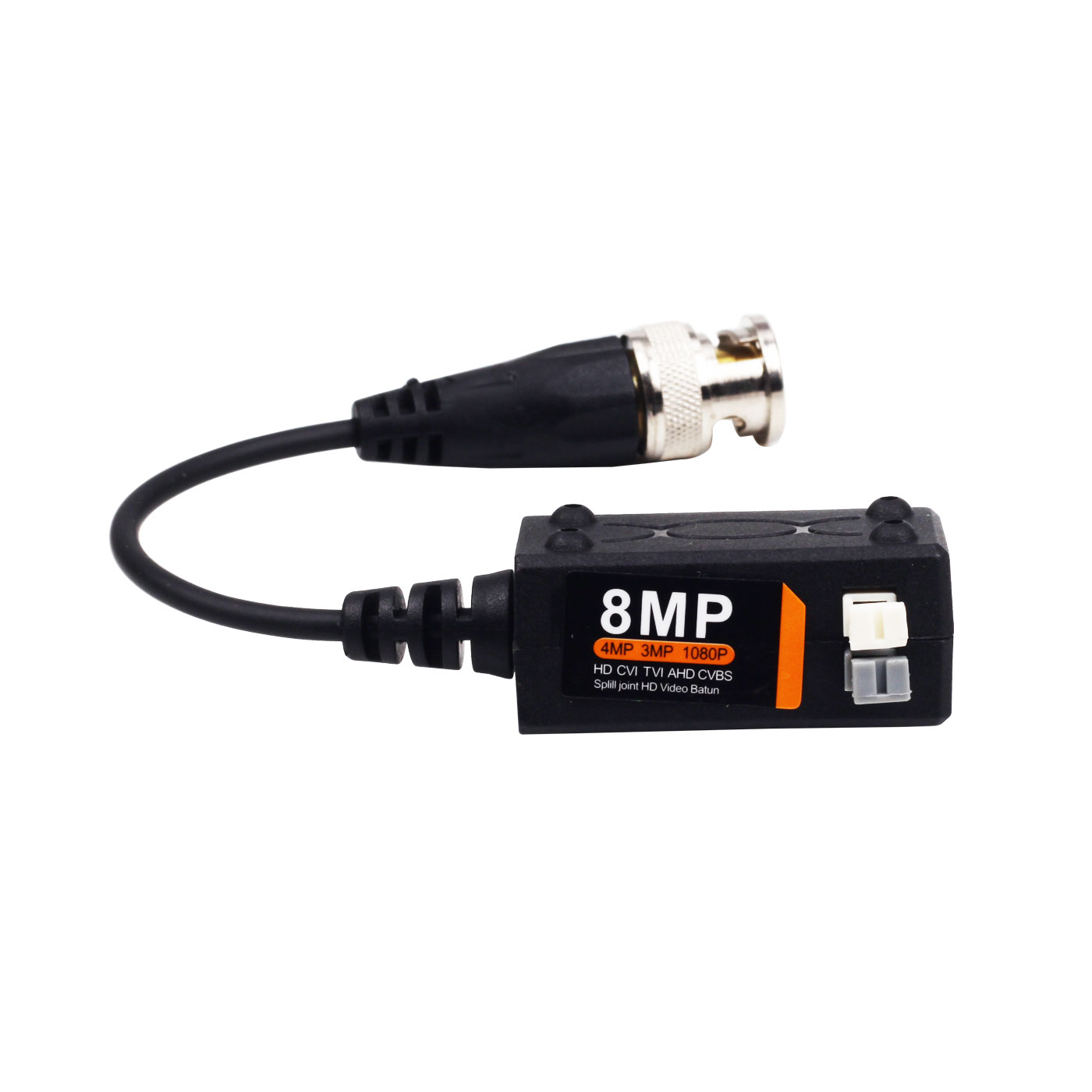

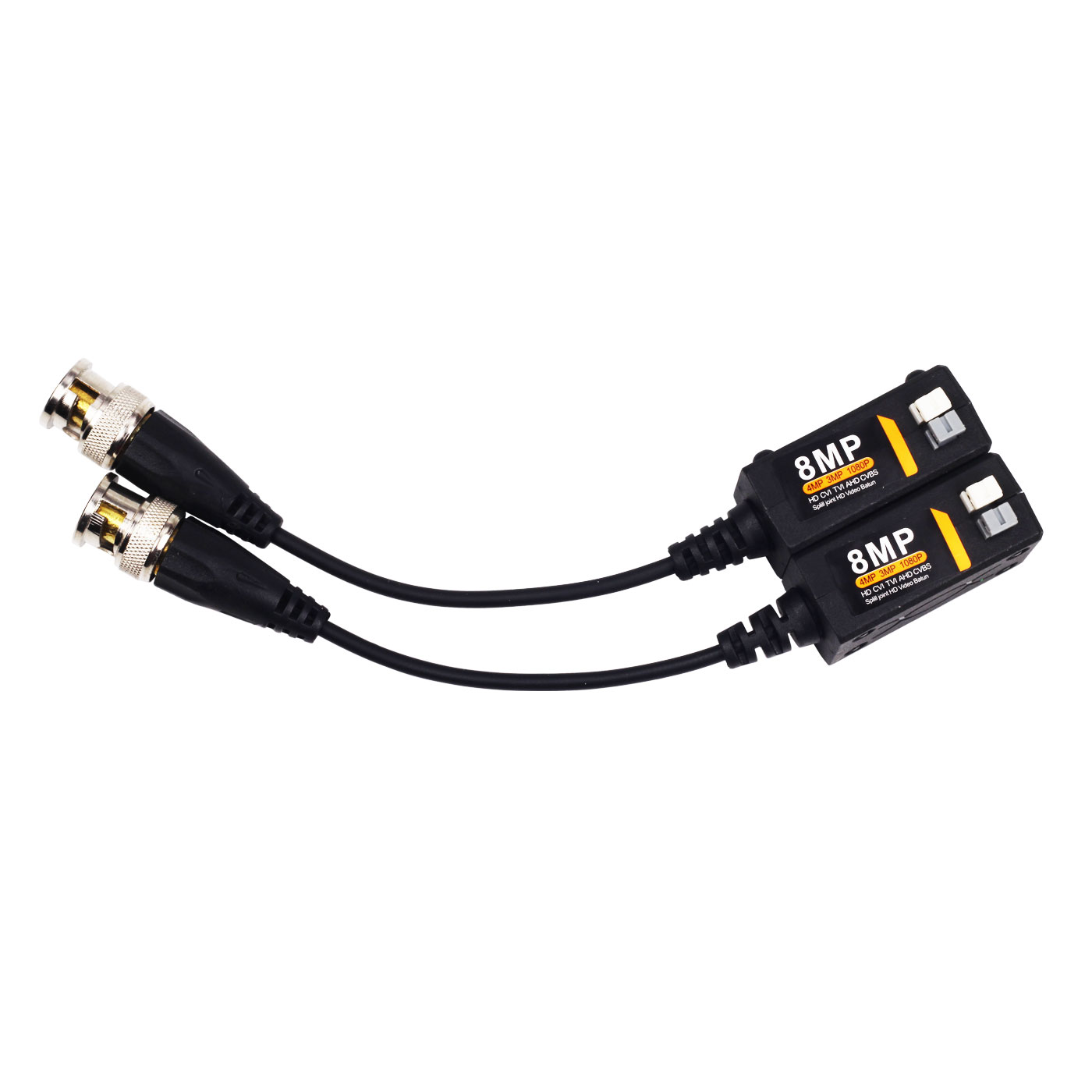

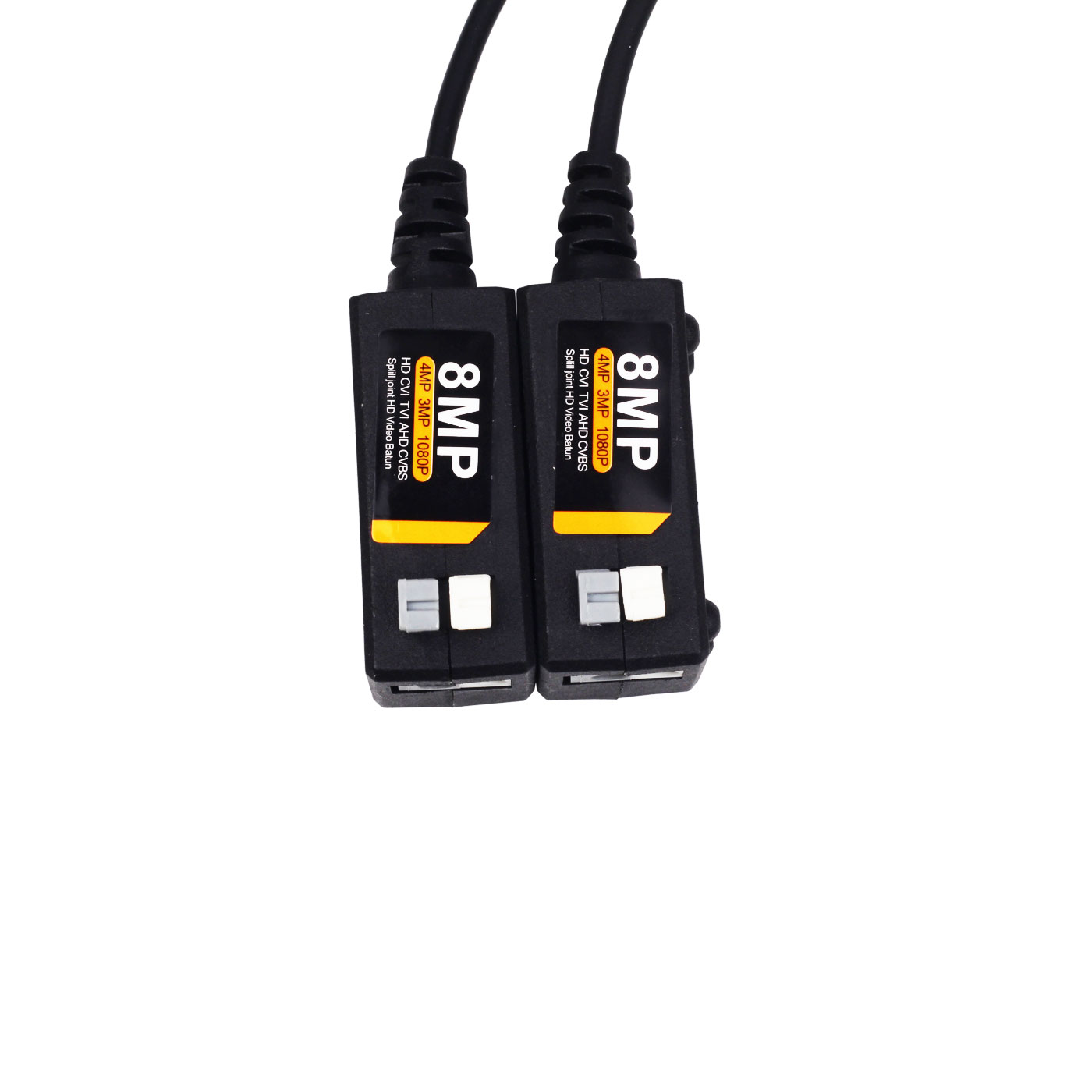

BNC Video Balun with 8MB Bandwidth over RJ-45 Cable – Model AD-PS-373 (Pair)

Efficiently transmit high-quality analog video signals up to 8MB over cost-effective RJ-45 (Cat5e/6) cabling with the AD-PS-373 BNC Video Balun. Ideal for CCTV and surveillance systems, this balun pair simplifies installation and reduces cable clutter.

Long Description

Overview:

The AD-PS-373 BNC Video Balun is a premium solution for extending analog video signals over long distances using readily available and inexpensive RJ-45 (Cat5e/6) twisted pair cabling. Designed for optimal performance, this balun pair eliminates the need for bulky and expensive coaxial cables, providing a clean, efficient, and cost-effective alternative for various video transmission applications.

Key Features:

• High-Quality Video Transmission: Supports video signals with a bandwidth of up to 8MB, ensuring clear and crisp images for your surveillance or video systems.
• Cost-Effective Cabling: Utilizes standard RJ-45 Cat5e/6 Ethernet cable, significantly reducing material costs and simplifying installation compared to traditional coaxial cables.
• Extended Transmission Range: Transmits video signals over substantial distances without significant signal degradation (specific distance depends on cable quality and environment – typically hundreds of meters).
• Passive Design: No external power required, making installation simpler and more flexible.
• Easy Installation: Features BNC male connectors for direct connection to cameras or DVRs, and RJ-45 female jacks for quick and secure cable termination.
• Durable Construction: Built with high-quality materials for reliable and long-lasting performance in various environments.
• Compact & Lightweight: Small footprint allows for discreet installation and reduces cable clutter.
• Versatile Application: Ideal for CCTV security systems, surveillance cameras, public displays, and other analog video applications.

Benefits:

• Reduced Installation Costs: Save money on both cabling and labor.
• Simplified Wiring: Consolidate multiple video feeds onto a single multi-pair cable.
• Improved Cable Management: Neater installations with thinner and more flexible RJ-45 cables.
• Enhanced Signal Integrity: Designed to minimize noise and interference for a cleaner video feed.
• Flexible Deployment: Easily route cables through conduits and tight spaces where coaxial cable might be cumbersome.

Technical Specifications (AD-PS-373):

• Video Format: NTSC, PAL, SECAM
• Bandwidth: 8MHz (8MB)
• Connectors:
  • Video Input/Output: BNC Male
  • Cable Connection: RJ-45 Female
• Transmission Medium: Unshielded Twisted Pair (UTP) Cat5e/6 or higher
• Transmission Distance:  “Up to 300 meters for color video, 400 meters for B/W video using Cat5e”)
• Impedance:
  • BNC: 75 Ohms
  • RJ-45: 100 Ohms
• Operating Temperature: ( -10°C to 70°C )

Package Contents:

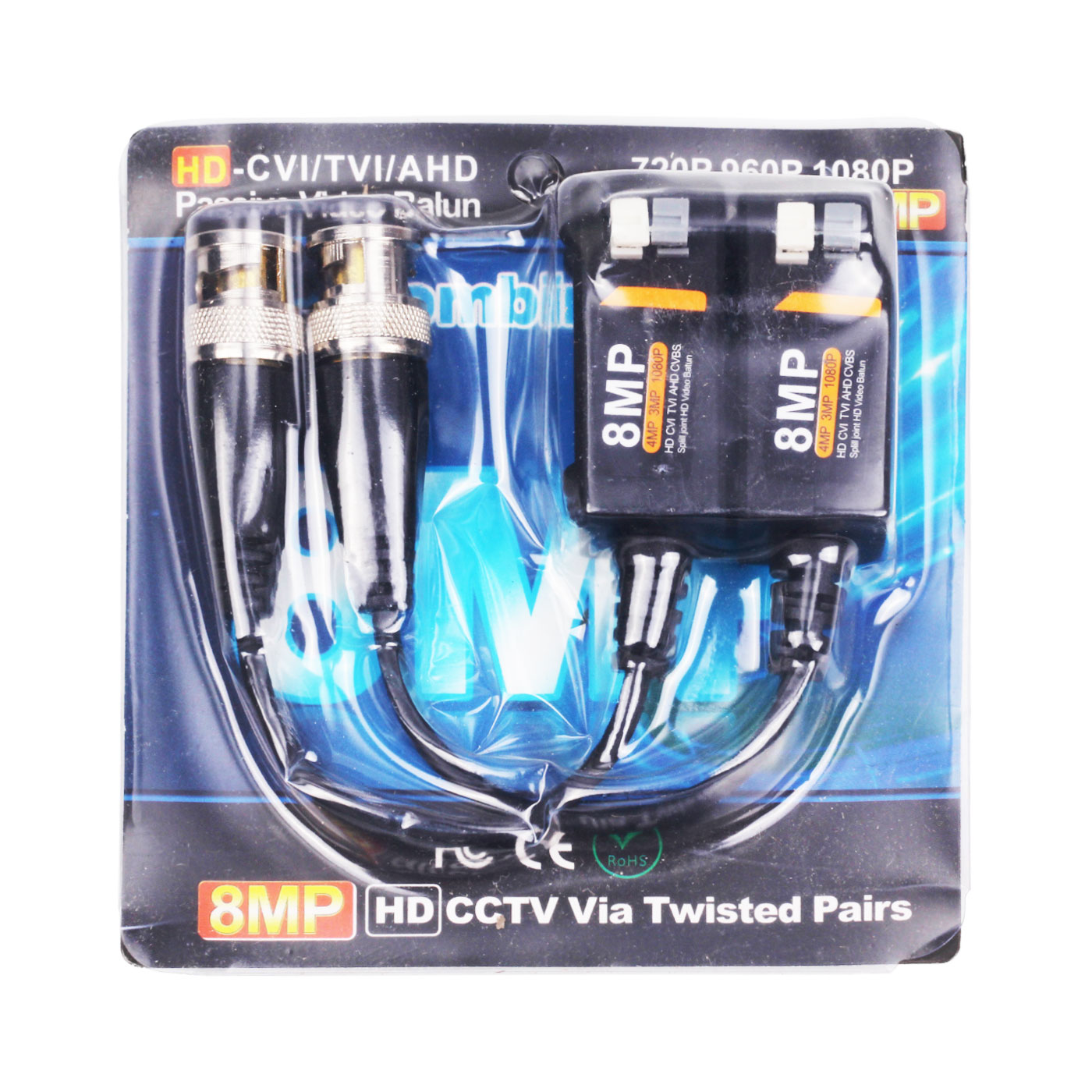

• 1 x BNC Video Balun (AD-PS-373) – Pair (one sender, one receiver)

Applications:

• CCTV Surveillance Systems
• Security Camera Installations
• Video Conferencing
• Commercial & Residential Video Distribution
• Educational Facilities
• Retail Environments

Why Choose the AD-PS-373?

The AD-PS-373 BNC Video Balun offers a superior alternative to traditional coaxial cabling for analog video transmission. Its robust design, passive operation, and compatibility with standard Cat5e/6 cables make it an indispensable tool for professional installers and DIY enthusiasts alike, ensuring high-quality video and significant cost savings. Upgrade your video transmission system today with the reliable AD-PS-373.
