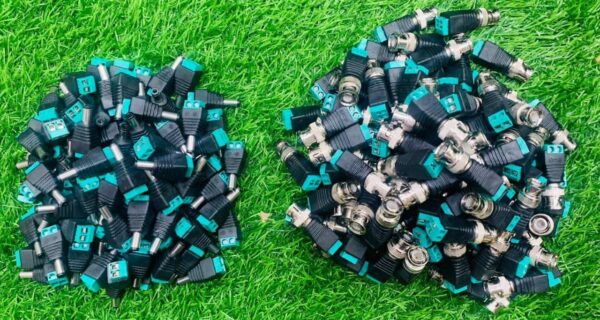

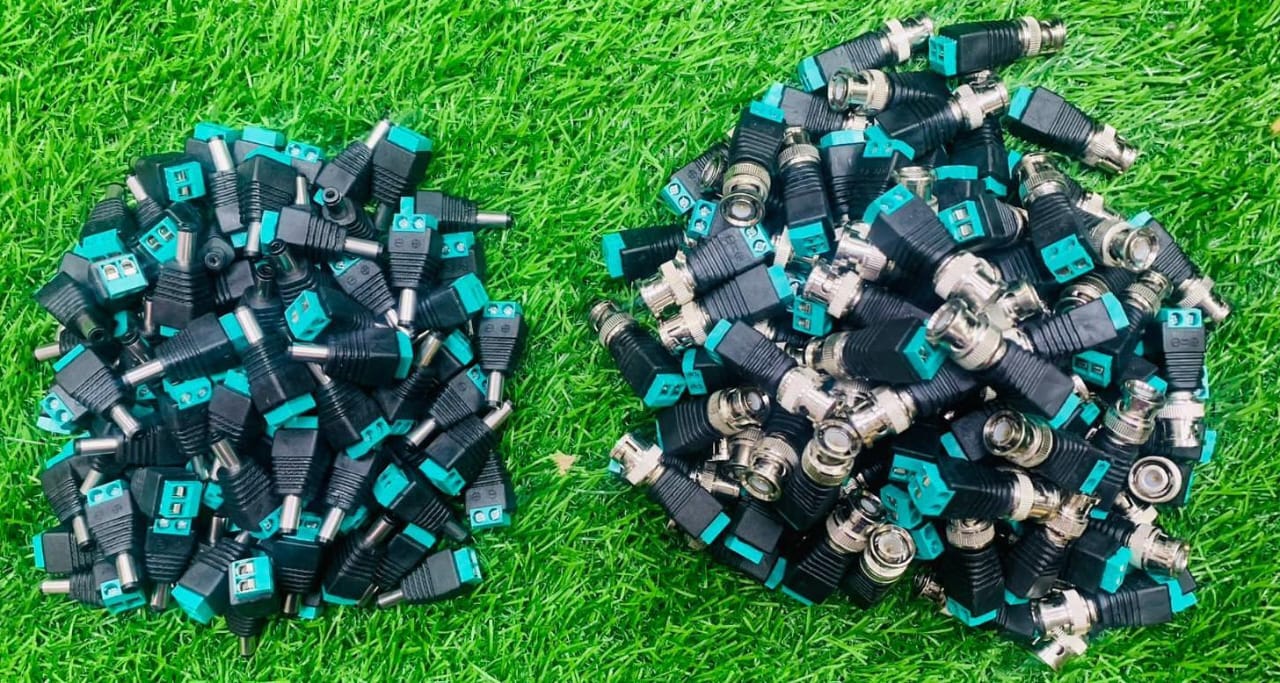

BNC Male + DC Male Screw-Type Connector Combo

Model: [Insert Model Name/Number]
Quick-Termination Solution for CCTV & Low-Voltage Applications

This integrated BNC Male and DC Male Screw-Type Connector offers a practical, tool-free solution for installing and powering analog CCTV cameras and other video/power systems. Designed for quick field termination, it enables both coaxial video signal and DC power delivery using screw terminals—eliminating the need for crimping or soldering.

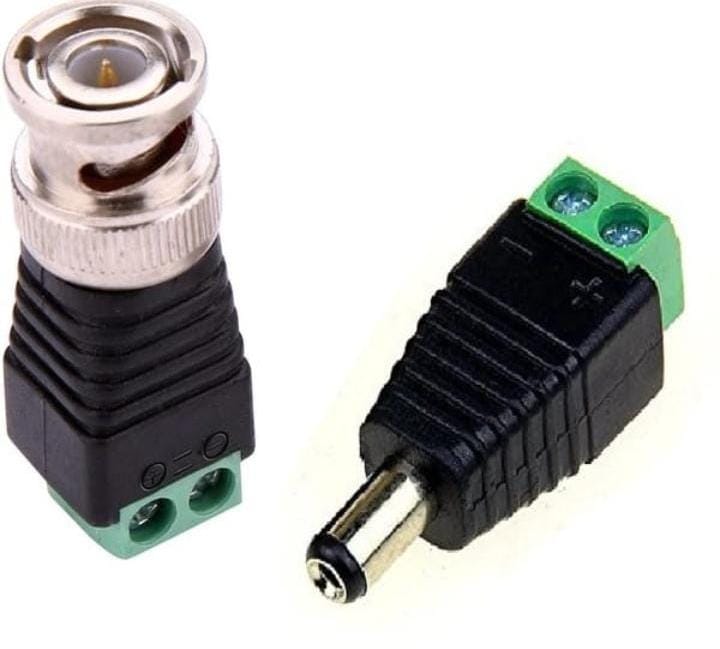

Connector Components

1. BNC Male Connector (Screw-Type)

• Function: Transmits analog video or RF signal through coaxial cable.

• Bayonet Locking Mechanism: Secure, twist-lock engagement with female BNC sockets.

• Screw-Type Termination: Easily attach stripped coaxial cable without crimping tools.

• Construction: Typically nickel-plated brass with gold-plated center pin for durability and conductivity.

• Impedance: 75 Ohm (standard for video applications); supports frequencies up to 2–4 GHz.

2. DC Male Power Connector (Screw-Type)

• Function: Supplies DC power (commonly 12V) to cameras or other devices.

• Plug Size: Typically 5.5mm (outer) × 2.1mm (inner).

• Screw Terminals: For simple and secure connection of positive/negative power wires.

• Polarity Markings: Prevent reverse wiring and equipment damage.

• No soldering required: Ideal for fast and flexible installations.

Key Benefits

• Tool-Free Installation: Just a screwdriver needed—no soldering or crimping.

• Quick & Reusable: Easily remove and reuse during upgrades or repairs.

• Reliable Connectivity: Secure signal and power connection in one unit.

• Clean Cable Management: Ideal for Siamese cables (coax + power).

• Cost-Effective: Eliminates the need for separate power and signal connectors.

Typical Applications

• CCTV Surveillance Systems: Perfect for analog camera installations using Siamese cable (video + power).

• DIY Security Projects: Simplifies wiring for home security setups.

• Low-Voltage DC Devices: Connect LED strips, access control panels, or IR transmitters.

• Testing & Prototyping: Great for benchtop setups that require both signal and power delivery.

Technical Specifications

Simplify your CCTV installations or power/video projects with the BNC + DC Screw Connector Combo—built for convenience, reliability, and long-lasting
