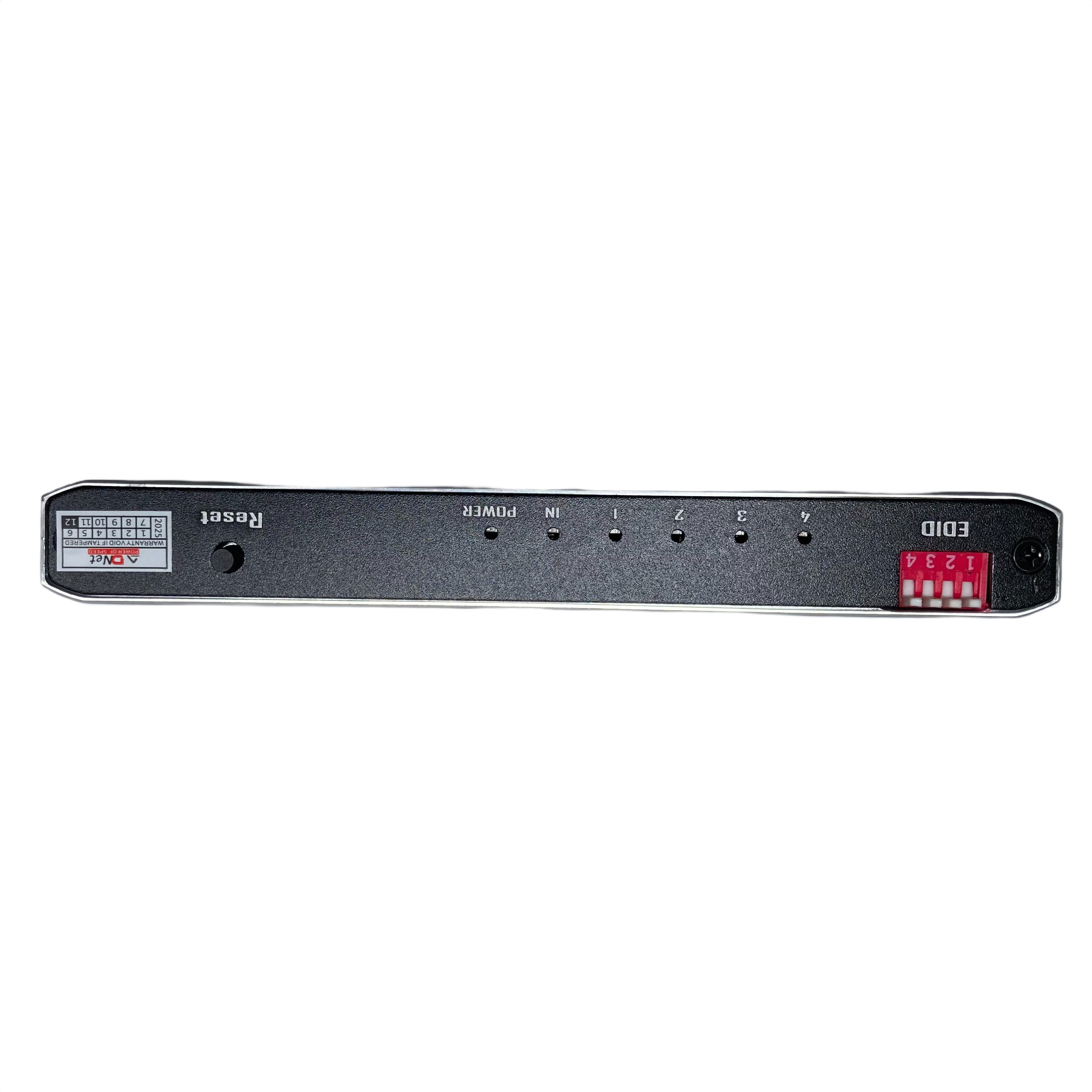

4 PORT HDMI SPLITTER 1 IN 4 OUT ,4K 2K 60 Hz (ADP-HS-1072)

The ADP-HS-1072 is a high-performance 1×4 HDMI Splitter designed to take a single HDMI source (like a gaming console, cable box, or laptop) and distribute it to four separate HDMI displays simultaneously.

Unlike a “switch” (which lets you pick between multiple inputs), this splitter mirrors the exact same image and audio onto two screens at once.

Core Technical Specifications

Key Features

• Plug and Play: No software or drivers required. It automatically detects the display resolution and scales accordingly.

• High Refresh Rate: Support for 60Hz at 4K ensures smooth motion, which is essential for gaming and high-definition sports.

• Signal Buffering: The unit amplifies the signal, allowing for longer HDMI cable runs without loss of video quality or digital “noise.”

• Compact Design: The ADP-HS-1072 is usually housed in a metal casing to provide better heat dissipation and durability.

Common Use Cases

• Home Theater: Sending a movie from a Blu-ray player to both a TV and a Projector.

• Retail/Showrooms: Displaying the same promotional video on two different monitors.

• Gaming: Streaming or recording gameplay by sending one signal to a monitor and the other to a capture card.

• Data Centers: Monitoring a server output on two screens in different locations.

Important Notes

1. Extended Mode: This device does not support “Extended Desktop” (showing different windows on each screen). It only supports “Mirror Mode.”

2. Power Supply: This unit typically requires a 5V DC power source (included) to maintain the 4K signal integrity across two outputs.

3. Cable Quality: To achieve 4K @ 60Hz, ensure you are using HDMI 2.0 certified cables
