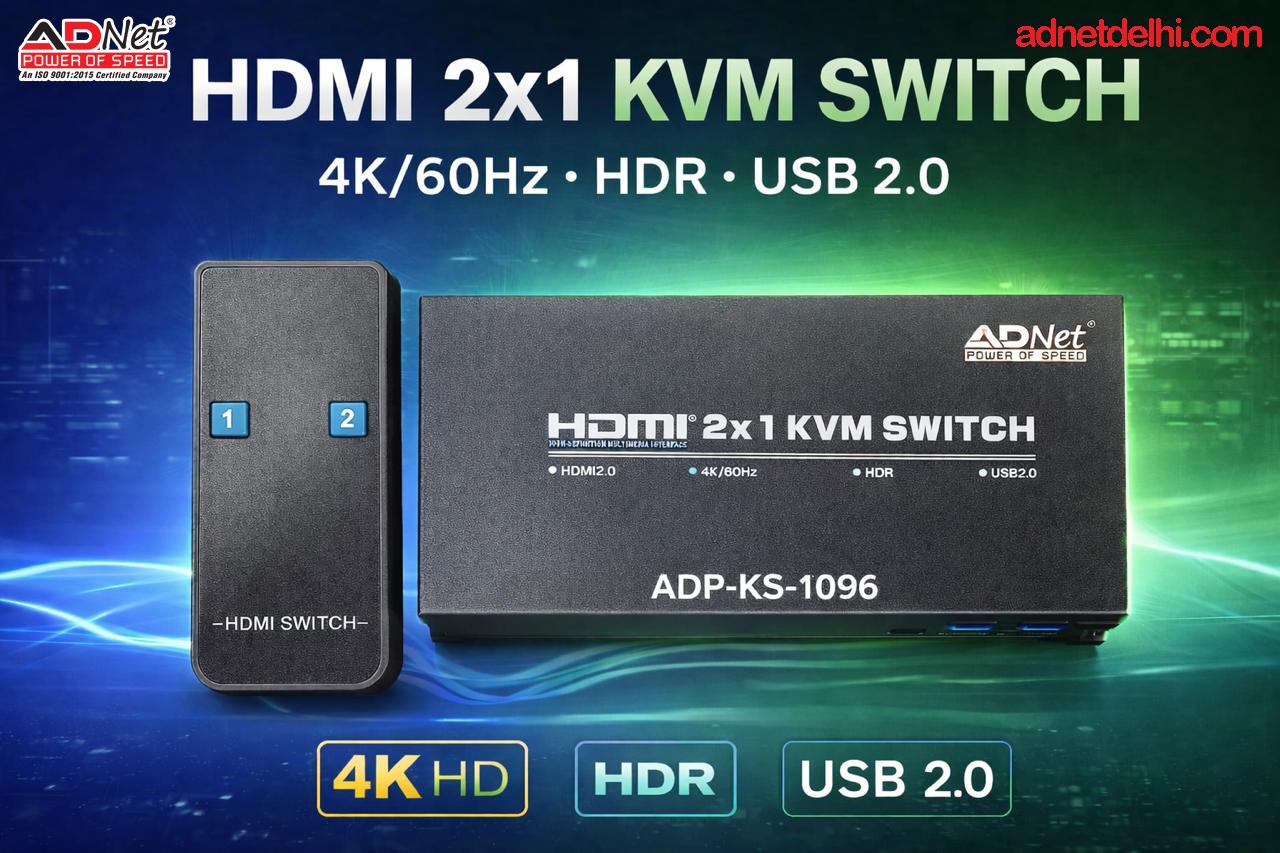

2 PORT HDMI KVM USB SWITCH 4K 60 Hz ADP-KS-1096 (2 COMPUTER SHARE 1 MONITER)

The ADP-KS-1096 is a 2-port HDMI KVM (Keyboard, Video, Mouse) switch designed to allow one user to control two separate computers using a single monitor, keyboard, and mouse. It is specifically optimized for high-resolution setups, supporting 4K at 60Hz.

Key Technical Specifications

• Resolution Support: Up to 4K UHD (3840 x 2160) @ 60Hz. It is also backward compatible with lower resolutions such as 1080p and 720p.

• Ports: * 2x HDMI Inputs: For connecting the video outputs of two PCs/Laptops.

  • 2x USB Type-B (Host): For connecting the data/control signals from two PCs.

  • 1x HDMI Output: For connecting your main monitor.

  • USB Peripheral Ports: Typically features 2-4 USB Type-A ports for your keyboard, mouse, and additional peripherals (like a printer or flash drive).

• Switching Methods:

  • Physical Push-button: A manual button located on the top of the device.

  • Wired Remote (Optional): Many models in this series include a small extension button that can be placed on your desk for easier access.

• Compatibility: Plug-and-play with Windows, macOS, and Linux; no driver installation is required.

• Space Saving: Eliminates the need for a second monitor, keyboard, and mouse, drastically reducing desk clutter.

• High Performance: Support for 60Hz ensures smooth video playback and gaming, which is a significant upgrade over older 30Hz models that can feel “choppy.”

• Audio Integration: Supports digital audio via the HDMI cable. Some variations may also include dedicated 3.5mm jacks for speakers or microphones.

• Bus Powered: Often powered directly through the USB connections to the computers, though it may include a 5V DC power port for use with high-power USB devices .
