16 PORT HDMI SPLITTER 1 IN 16 OUT ,4K 2K 60 Hz (ADP-HS-1074)

The ADP-HS-1074 is a high-performance 1-in-16-out HDMI distribution amplifier designed to split a single 4K HDMI source across 16 different displays simultaneously. It is commonly used in retail showrooms, sports bars, data control centers, and corporate boardrooms where synchronized content is required across many screens.

Core Specifications

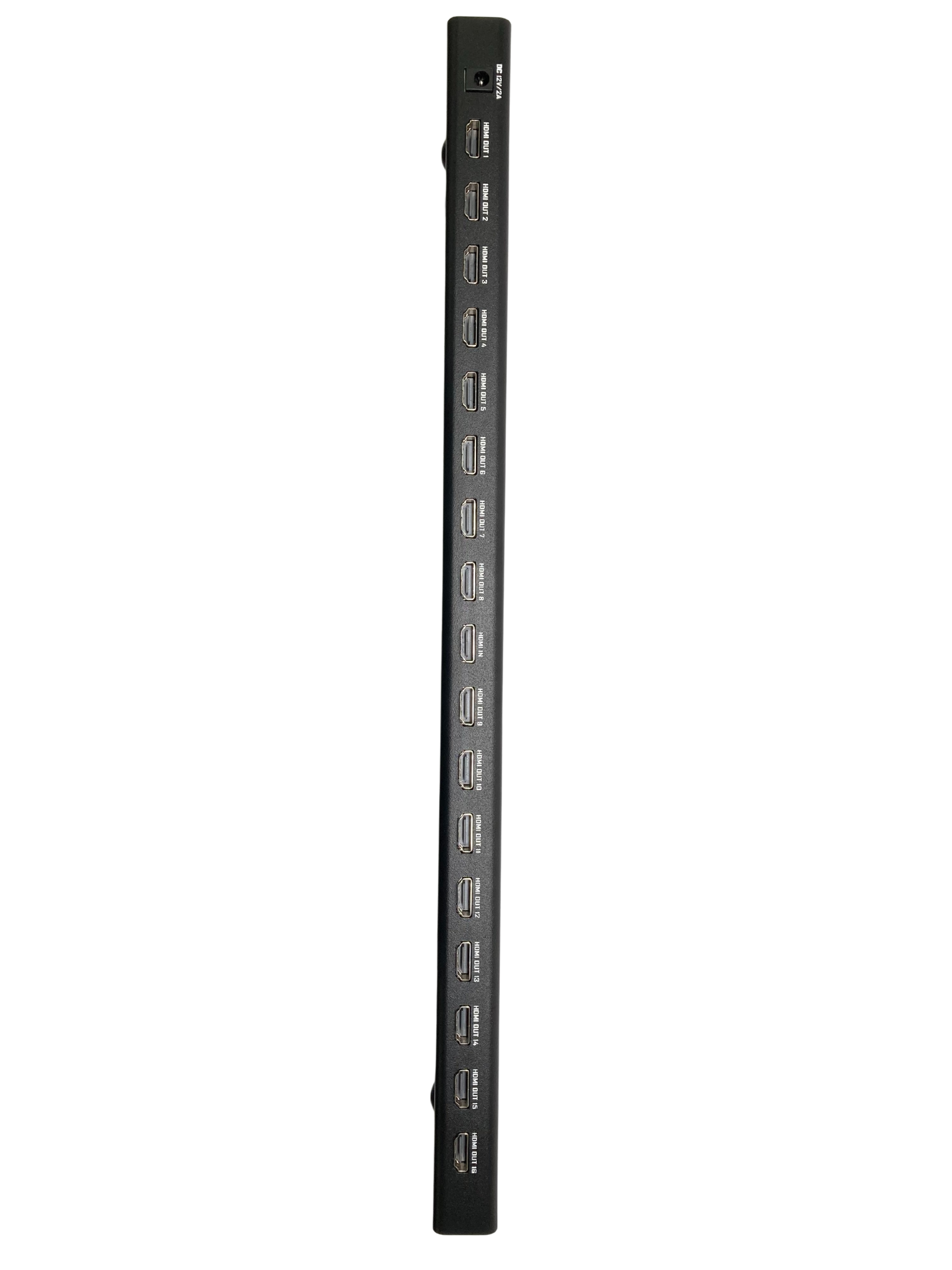

• Input/Output: 1 x HDMI Input to 16 x HDMI Outputs.

• Resolution Support: Supports Ultra HD resolutions up to 4K x 2K @ 60Hz. It is also backward compatible with 2K @ 60Hz, 1080p, and 720p.

• Bandwidth: Typically 18Gbps to support the 4K @ 60Hz standard (HDMI 2.0).

• HDCP Compliance: Compatible with HDCP 2.2 (High-bandwidth Digital Content Protection), allowing it to play protected content from Blu-ray players or streaming sticks.

• Audio Support: Supports high-definition audio formats including LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and standard DTS/Dolby Digital.

Key Features

• Plug-and-Play: No software or driver installation is required. The device works instantly upon connection.

• Signal Amplification: Features a built-in equalizer to boost the HDMI signal, allowing for longer cable runs (typically up to 10–15 meters for 4K) without signal degradation.

• EDID Management: Advanced EDID settings allow the splitter to “negotiate” with the source device to ensure the best possible resolution is sent to all 16 connected displays.

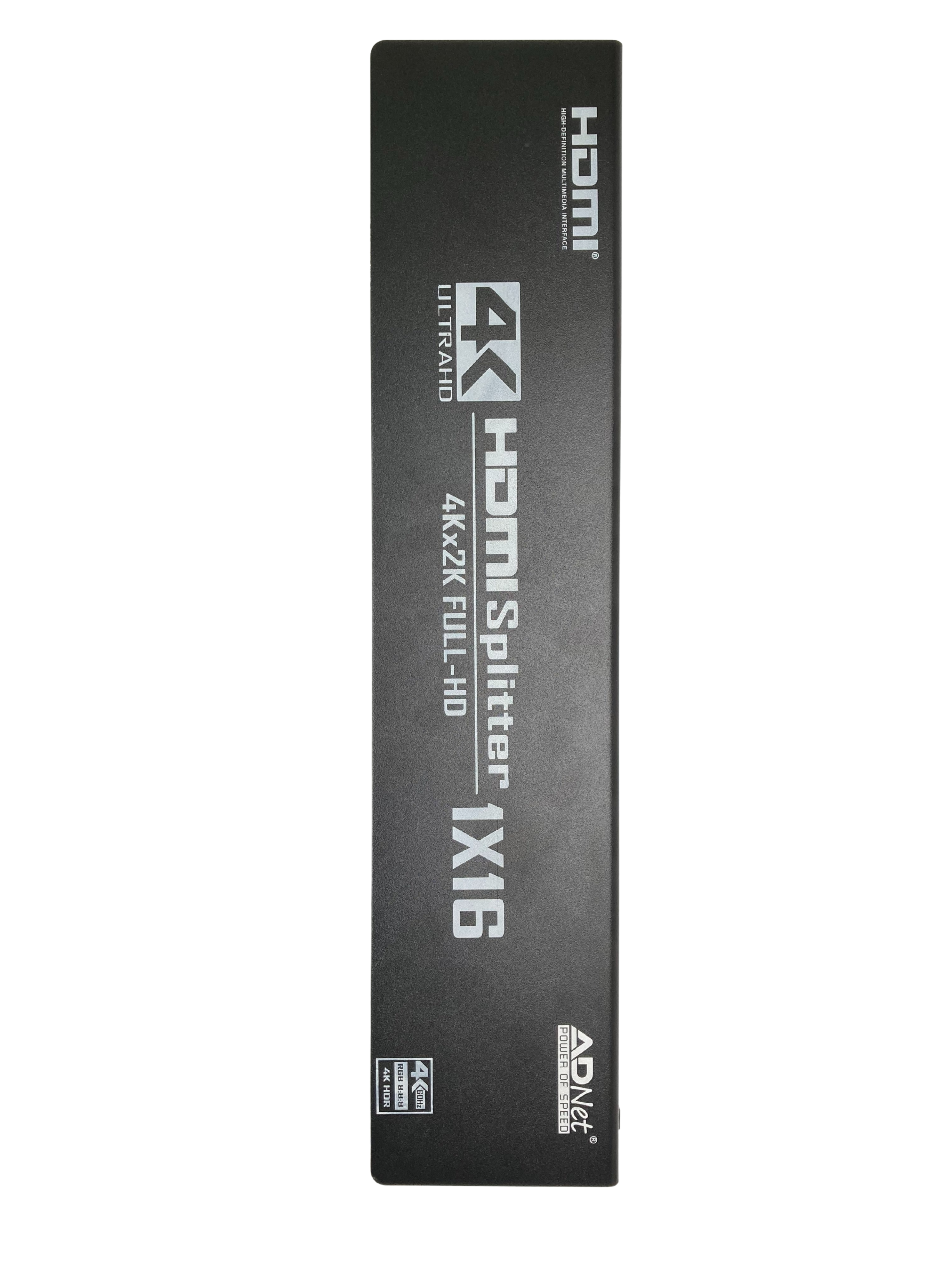

• Metal Housing: Built with a durable metal chassis for better heat dissipation and protection against electromagnetic interference.

• LED Indicators: Front-panel LEDs provide a quick visual status of the power and which output ports are actively receiving a signal.

Package Contents

1. 1 x 16-Port HDMI Splitter (ADP-HS-1074).

2. 1 x 12V DC Power Adapter.

3. 1 x User Manual..

Note: This is a splitter, not a matrix or a switch. It mirrors the same content on all 16 screens; it does not allow you to show different content on each screen (Extend Mode) unless your source device specifically supports multiple independent outputs.
